Pro
Tools|HD 3 Systems
|
DigiDesign |
The Pro Tools|HD® 3 Accel system supports
extremely large and complex sessions by leveraging the power-on-demand
capabilities of three dedicated DSP cards (PCI or PCIe) connected via
Digidesign’s proprietary TDM II bus architecture. The most powerful of
the base Core systems, Pro Tools|HD 3 Accel combines those specialized DSP
cards with the processing resources of your computer to deliver awesome
audio performance, large track counts, and impressive plug-in processing
power. To help you take advantage of that power, the Pro Tools|HD 3 Accel
system also includes the largest number of Digidesign® and Digidesign
Development Partner effects and instrument plug-ins as part of the free
HDpack collection.
Pro Tools|HD 3 Accel offers the best starting point for building an
expanded system. Create the ultimate, most flexible mixing workstation at
any time by adding more DSP cards and a Digidesign Expansion|HD expansion
chassis.*
Note: All Pro Tools|HD systems require the presence of at least one Pro
Tools|HD audio interface (purchased separately). Add interfaces to extend
your I/O capabilities.
* Only PCI systems can be expanded beyond 3 cards.
What’s in the Box

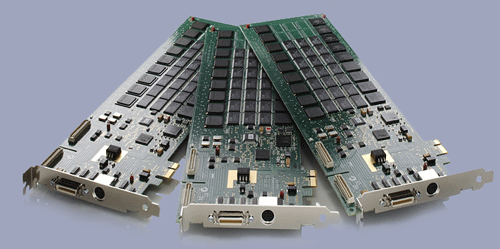

- 1 HD Core card and 2 HD Accel cards (PCI)
- 1 Accel Core card and 2 HD Accel cards (PCIe)
- Pro Tools® HD 7 software
- Over 60 processing plug-ins, virtual
instruments, and compatible applications
- Pro Tools HDpack plug-in bundle
- Free Bomb Factory® plug-ins
- Digidesign DigiRack™ Plug-ins
- Xpand!™ sample-playback/synthesis
workstation
- Pro Tools Ignition Pack 2 Pro
collection
- 12-foot DigiLink cable for I/O
connectivity*
- 2 TDM FlexCables for Pro Tools|HD card
interconnection
- iLok USB Smart Key for software
authorization
- Printed boxed manual set, including
Digidesign’s development partner catalog
Features
- 27 DSP chips for powering the mix engine
and TDM plug-ins
- Sample-rate support up to 192 kHz
- Support for up to 96 channels of I/O
(160 channels maximum, additional DSP cards required)
- Up to 192 simultaneous audio tracks at
44.1/48 kHz (256 total audio tracks)
- Up to 96 simultaneous audio tracks at 96
kHz
- Up to 36 simultaneous audio tracks at
192 kHz
- Up to 160 mono or stereo auxiliary
tracks
- Up to 128 instrument tracks
- 256 MIDI tracks
- 128 internal mix buses
*Optional 100-foot DigiLink cable supports up to 96 kHz sample rates
 |
|
|
|
| Pro
Tools|HD audio interface with up to 16 channels of analog
and digital I/O at 192 kHz.
|
|
 |
|
|
|
| Pro
Tools|HD audio interface with up to 16 channels of digital
I/O at 192 kHz.
|
|
 |
|
|
|
| Pro
Tools|HD audio interface with up to 16 channels of analog
and digital I/O at 96 kHz.
|
|
 |
|
|
|
| Pro
Tools|HD audio interface for line-level inputs, with up to
16 channels of I/O at 96 kHz.
|
|
 |
|
|
|
| Remote-controllable,
world-class, eight-channel mic preamp for Pro Tools
systems or stand-alone use.
|
|
 |
|
|
|
| Pro
Tools system peripheral that provides near sample-accurate
lock to time code or bi-phase/tach signals and a 192 kHz–capable,
high-fidelity, low-jitter Word Clock.
|
|
 |
|
|
|
| Pro
Tools system peripheral that provides up to 10 MIDI inputs
and outputs for a total of 160 channels.
|
|
|
|
|
|
