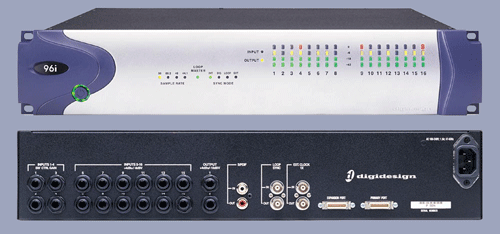

96i enables you to readily introduce output from
third-party outboard gear — keyboards, samplers, effects, and other
line-level equipment — into your Pro Tools environment. Its 16 analog
inputs provide balanced or unbalanced A/D conversion using tip-ring-sleeve (TRS)
1/4" connectors. A S/PDIF port capable of 24-bit digital I/O allows you
to connect professional DAT recorders, CD players, and other digital
recording devices. A/D and D/A converters of the same quality as those of
the Digidesign 96 I/O ensure that your signal’s fidelity is maintained
going into and coming out of Pro Tools.
Features
- High-quality, 2U I/O device for
instruments and effects gear
- 24-bit balanced TRS connections: 16
analog inputs, 2 analog outputs
- Two channels of 24-bit S/PDIF I/O (RCA
connection)
- Supports sample rates up to 96 kHz
- Digidesign 96 I/O-quality converters
- Software-adjustable level controls for
inputs (six-step for inputs 1-4, two-step for inputs 5-16); outputs
software-switchable between +4 dBu and –10 dBV
- 108 dB or greater dynamic range
- Support for balanced and unbalanced
connections
- Front-panel LEDs for input and output
metering
- Multiple units provide up to 96 discrete
inputs
- Compatible with Pro Tools|HD cards and
peripherals
Dimensions
- Width: 19 in / 48.26 cm
- Height 3.5 in / 8.89 cm
- Depth: 15.13 in / 38.42 cm
- Weight: 13.81 lbs / 6.26 kg
A/D
- Sample Rate: 44.1, 48, 88.2, 96 kHz ±10%
- Dynamic Range: 111 dB (A-weighted), 108
dB (unweighted); see Notes 1 and 4
- THD+N: 0.0008% / 0.0013% (-102 dB / -98
dB); +5 dBV/+17 dBu; see Note 5
- Frequency Response: Response: +0.1 /
-0.2 dB @ -2 dBu, 20 Hz – 20 kHz; see Notes 1 and 2
- Differential Input Impedance: >25
kohms
D/A
- Sample Rate: 44.1, 48, 88.2, 96 kHz ±10%
- Dynamic Range: 113 dB (A-weighted), 111
dB (unweighted); see Notes 1 and 3
- THD+N: 0.003%/0.003% (-90 dB / -90 dB);
-1 dBFS @ 997 Hz; see Note 6
- Frequency Response: +0.1 / -0.4 dB; -20
dBFS, 20 Hz – 20 kHz; see Notes 1 and 2
- Differential Output Impedance: 50 ohms (typical)
Note 1 – Measurement
made using +4 dBu input or output settings
Note 2 – Measured relative to level at 1 kHz
Note 3 – Measured with digital input at –60 dBFS @ 997 Hz
Note 4 – ADC measured with analog input level at –42 dBu @ 997 Hz
Note 5 – THD measured with input settings at -8 dBV / +4 dBu
respectively
Note 6 – THD measured with output settings at -10 dBV / +4 dBu
respectively
Sample Rate = 48 kHz, Noise BW = 22 Hz – 20 kHz
unless otherwise noted, Tambient = +25 C
|
