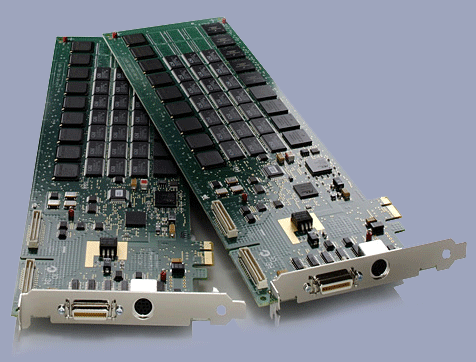

Designed for handling large I/O and track
count requirements, the Pro Tools|HD® 2 Accel system combines two
dedicated DSP cards (PCI or PCIe), connected via Digidesign’s
proprietary TDM II bus architecture, with the processing resources of your
computer. This powerful system gives music and post professionals the
rock-solid performance of the TDM platform along with more dedicated DSP
for plug-in processing.
Note: All Pro Tools|HD systems require the presence of at least one Pro
Tools|HD audio interface (purchased separately). Add interfaces to extend
your I/O capabilities.
What’s in the Box
- 1 HD Core card and 1 HD Accel card (PCI)
- 1 Accel Core card and 1 HD Accel card (PCIe)
- Pro Tools® HD 7 software
- Over 50 processing plug-ins, virtual
instruments, and compatible applications
- Pro Tools HDpack plug-in bundle
- Free Bomb Factory® plug-ins
- Digidesign DigiRack™ Plug-ins
- Xpand!™ sample-playback/synthesis
workstation
- Pro Tools Ignition Pack 2 Pro
collection
- 12-foot DigiLink cable for I/O
connectivity*
- TDM FlexCable for Pro Tools HD card
interconnection
- iLok USB Smart Key for software
authorization
- Printed boxed manual set, including
Digidesign’s development partner catalog
Features
- 18 DSP chips for powering the mix engine
and TDM plug-ins
- Sample-rate support up to 192 kHz
- Support for up to 64 channels of I/O
- Up to 192 simultaneous audio tracks at
44.1/48 kHz (256 total audio tracks)
- Up to 96 simultaneous audio tracks at 96
kHz
- Up to 36 simultaneous audio tracks at
192 kHz
- Up to 160 mono or stereo auxiliary
inputs
- Up to 128 instrument tracks
- 256 MIDI tracks
- 128 internal mix buses
*Optional 100-foot DigiLink cable supports
up to 96 kHz sample rates
Incorporating the latest advances in
audio, synchronization, and MIDI technology, Pro Tools|HD® I/O interfaces
work together with your Core system to deliver unparalleled sonic quality
and functionality. Custom-configure your system by choosing from a wide
range of interfaces, which deliver high-resolution audio with built-in
sample rate conversion; flexible analog and digital I/O in the most
popular formats; pristine, remote-controllable preamplification;
sample-accurate MIDI; and versatile synchronization capabilities.
 |
|
|
|
| Pro
Tools|HD audio interface with up to 16 channels of analog
and digital I/O at 192 kHz.
|
|
 |
|
|
|
| Pro
Tools|HD audio interface with up to 16 channels of digital
I/O at 192 kHz.
|
|
 |
|
|
|
| Pro
Tools|HD audio interface with up to 16 channels of analog
and digital I/O at 96 kHz.
|
|
 |
|
|
|
| Pro
Tools|HD audio interface for line-level inputs, with up to
16 channels of I/O at 96 kHz.
|
|
 |
|
|
|
| Remote-controllable,
world-class, eight-channel mic preamp for Pro Tools
systems or stand-alone use.
|
|
 |
|
|
|
| Pro
Tools system peripheral that provides near sample-accurate
lock to time code or bi-phase/tach signals and a 192 kHz–capable,
high-fidelity, low-jitter Word Clock.
|
|
 |
|
|
|
| Pro
Tools system peripheral that provides up to 10 MIDI inputs
and outputs for a total of 160 channels.
|
|
|
