Reach 57”
(145cm) - Boom 72” (183cm)
Wt. 45 lbs. (21kg)

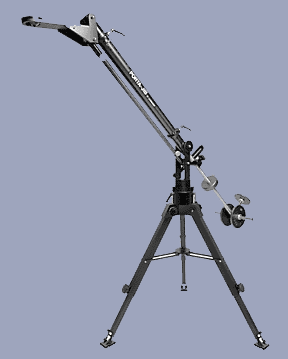

Designed to carry up to 100 lbs.
(45kg) of camera and fluid head weight, this is the most versatile of all
lightweight jibs. Assembles in less than 5 minutes. No tools required. All
parts are machined aluminum and stainless steel. Boom and pan lock
included. Front inserts available for all standard fluid heads: 100mm,
150mm, Mitchell. Base plate available for standard 150mm and Mitchell
tripods, or it can be equipped with our LWTi interface plate that allows
it to drop into our Light Weight Tripod.
Price includes
Vector balance bar, 7 lbs. (3.2kg) fine tuning weight, 50 lbs. (23kg) of
counter weights and choice of 150mm, Mitchell or Lightweight Tripod base.
| PORTA-JIB
with 150mm front: |
|
|
| Optional ACCESSORIES: |
|
Mitchell or
100mm insert |
Wt. 1.5 lb (.7kg) |
| 150mm insert |
Wt. 1.8 lb (.8kg) |
| 150mm base |
Wt. 2 lb (.9kg) |
| Mitchell base |
Wt. 2 lb (.9kg) |
Light Weight
Tripod interface |
Wt. 2.5 lbs
(1.1kg) |
| DV Column
interface |
Wt. 2 lb (.9kg) |
|
|
17” EXTENSION KIT
- Increases Reach to 74”
(188cm)
- Increases Boom to 100”
(254cm)
- Adds 5.5 lbs (2.5kg)
- Note: Recommended weight
capacity:
60 lbs. (27kg.)
- Extra counter weights
will be needed.
It takes 15 lbs. to balance
the extended front, and the camera/fluid head needs 1.5X weight to
balance. |
|
|
36”
EXTENSION KIT
- Increases Reach to 92”
(234cm)
- Increases Boom to 131”
(333cm)
- Adds 9 lbs (4.1kg)
- Note: Recommended weight
capacity:
45 lbs. (20kg.)
-Extra counter
weights will be needed.
It takes 30 lbs. to balance
the extended front, and the camera/fluid head needs 2X weight to
balance.
Additional Counter
Weight -
Our weights are engraved
with the Porta-Jib name, and are powder-coated to prevent them
from rusting. Any barbell weights with a standard 35mm hole will
work, but rusting will usually occur. Our weight shaft has a
1" (25mm) diameter.
|
| Monitor
Support Bracket |
Secondary
arm for small LCD
monitors
(requires Monitor
Support Bracket)
|
|
