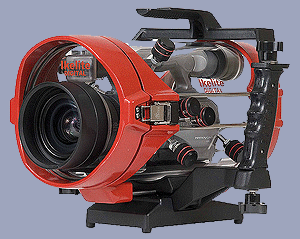

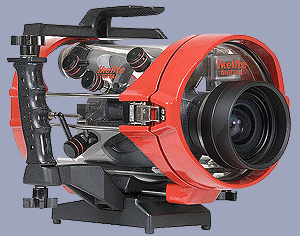

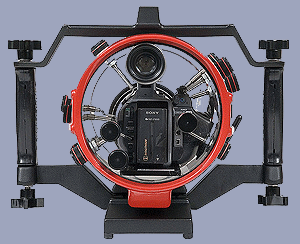

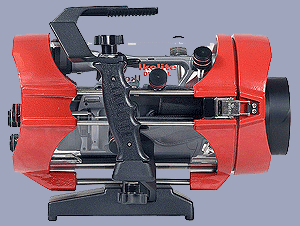

Constructed of clear acrylic tubing
shrouded with cast aluminum end caps for strength and trouble-free
performance. This “Clearly Superior” design provides full view of
the camcorder, control functions, and back "O" ring seal for
assurance the system is safe. Maximum operating depth is 200 feet (60
m).
The Sony HVR-V1 will operate in this
housing without special accessories like the boom microphone and
Sony wide-angle lens installed. The housing includes internal Raynox
HD-7062 0.7x HD Wide-Angle Lens for use with both FX7 and V1 cameras.
The Base removes instantly with a unique
toggle clamp for traveling or attaching of the optional Pro
Video-Lite 3 battery pack. The handle assembly detaches from
the housing by removal of just two nuts for packing.
The included removable UR/Pro
filter enhances red tones in tropical blue water settings with available
sunlight at depths up to 80 feet (24 m). An accessory green water filter
#6441.83 is also available for color correction and more natural tones
in green water settings.
Sony NF-970 battery is accommodated.

Housing
Specifications
Depth
Rating.......
Controls.......
Size.......
Weight.......
Features.......
|
200
feet (60m)
Power On/Off
Start/Stop
Snapshot
Zoom
White Balance
Focus Lock
Manual Focus
Focus Ring
Expanded Focus
Exposure Button
Exposure Dial
ND Filter
Menu Button
Assign Buttons 1, 2, 3
Picture Profile
Status Check
14x14x15" (38x38x40cm)
20lbs (9.1kg)
Optical Grade Acrylic Dome Port
Super-Eye Viewfinder
Raynox 0.7x Wide-Angle Lens
UR/Pro Color Filter
Base & Handle Assembly
Top Handle |
|
