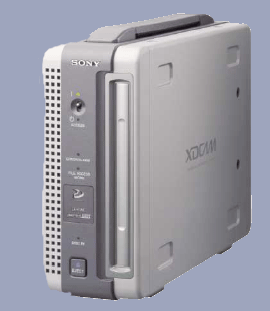

 The PDW-D1 is an XDCAM Drive Unit specifically designed for use in non-linear editing systems. The drive unit supports the i.LINK interface supporting DV IN/OUT (AV/C) and File Access Mode (FAM) protocols, allowing connection with a variety of non-linear editing systems. It features MPEG IMX/DVCAM switchable recording. The approximate recording times for the XDCAM disc are as follows: 85 minutes of 25 Mbps DVCAM, 68 minutes of 30 Mbps MPEG IMX, 55 minutes of 40 Mbps MPEG IMX, and 45 minutes of 50 Mbps MPEG IMX. Also, proxy AV and a variety of metadata can be created and stored on the disc. Through i.LINK (AV/C), the PDW-D1 supports real time conversion of MPEG IMX recorded material to DVCAM which is subsequently output as a
 DVCAM stream over i-LINK. This enables a customer to acquire in the highest picture quality and use their existing DV editing infrastructure. Through the i.LINK (FAM) interface, the PDW-D1 appears as a removable storage
device and enables an application to access the files directly off the disc. The PDW-D1's highly compact and lightweight design makes it ideal for many different work environments like a busy journalist's desktop as well as other awkward workspaces in the
`ield. The Sony XDCAM series of professional disc products have a 7-year warranty for the laser block. This warranty is unprecedented for Sony and demonstrates the confidence Sony has in its XDCAM products.
Особенности:
- MPEG IMX/DVCAM recording
- Proxy AV data recording
- Metadata recording
- i.LINK interface supports both DV IN/OUT and File Access Mode
- DVCAM stream output from MPEX IMX playback
- High speed file transfers of up to 30x for Proxy, 2.5x for DVCAM and 1.25x for MPEG IMX (at 50Mbps) files
- Equipped with one optical head
- Highly compact and lightweight
- AC/battery-powered operation
Supplied Accessories:
Set-up software for Windows PC
PDZ-1 software
XDCAM proxy server
Manual
Technical specifications:
| Power
requirements |
AC
100 to 240V.50/60Hz, DC (with battery) |
 |
| Power
consumption |
25W |
|
| Operating
temperature |
0
- 40C |
|
| Humidiy |
20
to 90% (relative humidity) |
|
| Mass |
3.0kg
(6lb 9oz) |
|
| Dimensions
(WxHxD) |
78x182x257mm
(3 1/8 x 7 1/4 x10 1/8 inches) |
|
| AVC
Recording Format: |
Video
- DVCAM (25Mb/s), Proxy Video (MPEG-4), Audio (4ch/16bit/48kHz),
Proxy Audio A-law (4ch, 8bit, 8kHz) |
|
| File
Access Mode Recording Format: |
Video
- MPEG IMX (50/40/30 Mb/s) DVCAM (25Mb/s), Proxy Video - MPEG-4,
Audio - MPEG IMX: 8ch/16bit/48kHz or 4ch/24bit/48kHz, DVCAM:
4ch/16bit/48kHz, Proxy Audio - A-law (4/8ch,8bit,8kHz) |
|
| Playback
Format: |
Video
- MPEG IMX (50/40/30Mb/s), DVCAM (25Mb/s), Proxy Video - MPEG-4,
Audio - MPEG IMX: 8ch/16bit/48kHz or 4ch/24bit/48kHz, DVCAM:
4ch/16bit/48kHz, Proxy Audio - A-Law (4/8ch,8bit,8kHz) |
|
| Recording/playback
time |
MPEG
IMX: 50Mb/s - 45 min, 40Mb/s - 55 min, 30Mb/s - 68 min, DVCAM - 85
min |
|
| Note: |
Through
i.LINK AVC, IMX format is down-converted to DV format |
Optional:
PFD23 Professional Disc
VMC-lL4615/4635 i.LINK Cable (4-pin to 6-pin, 1.5m/3.5m)
VMC-lL6615/6635 i.LINK Cable (6-pin to 6-pin, 1.5m/3.5m)
BKP-L551 Battery Adaptor
BP-GL65 Lithium-ion Battery Pack
BP-GL95 Lithium-ion Battery Pack
BP-L60S Lithium-ion Battery Pack
|
