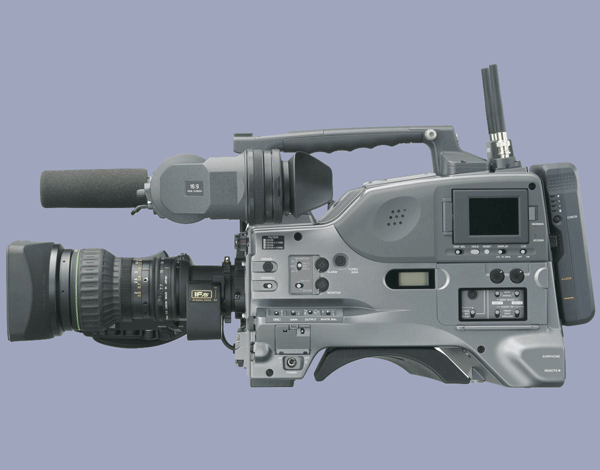

Видеоматрица:
3-chip 2/3" 16:9 widescreen PowerHAD EX CCD (1038(H)x594(V))
Оптические фильтры: 5600K, 5600K+1/8 ND,
5600K+1/64 ND 8 фильтров
Электронный затвор: 1/3 - 1/2000 (c)
Чувствительность: F11 (typical) 2000 лк
Мин. освещенность: ~0.13 lx (F1.4lens, +48dB turbo
gain)
Уровень смаза: -140db (typical)
Сигнал/шум: 63dB
Встроенный LCD: цветной 2,5"
Форматы записи: Video - DVCAM (25Mb/s), Proxy Video -
MPEG-4, Audio - DVCAM 4ch/16bit/48kHz, Proxy Audio - A-law (8/4ch, 8bits,
8 khz)
Время записи/воспроизведения: DVCAM
90min
Время непрерывной работы: ~120min (BP-IL75)
Вес: 3.6 кг, 5.3 кг (с VF, Mic, Disc, BP-IL75)
- 16:9/4:3 Switchable Power HAD EX x
3CCDs (1M pixel CCD)
- MPEG IMX/DVCAM Switchable
recording with 2 optical filter wheels (ND and CC)
- Compact & Lightweight Body
- 2.5-inch type Color LCD Screen
- Shock- and Dust-Resistant Disc
Drive
- AV + IT Connection (SDI, Composite,
4x Analog Audio, 4x AES/EBU, i-LINK)
- Optional PCM-CIA card adaptor for
Ethernet connection
- Thumbnail Search & Scene
Selection Operation
- DVCAM stream output from MPEG IMX
playback
- 40pin/Remote/i-LINK interefaces
for CA-701/702/755, RM-B150/B750, WRR-855A/B, DSR-DU1 and
WLL-CA50
|
Спецификация
носителя:
-
Storage capacity: 23.3 GB
-
Laser wavelength: 405 nm (blue-violet)
-
Data transfer (writing)
rate: 72 Mb/s (per optical head)
-
Disc diameter: 120 mm (4
5/8 inches)
-
Cartridge dimensions: 129
x 131 x 9 mm
-
Mass: 89 g (3 oz)
-
Recording format: Phase
change recording
Optional:
CA701 |
SDI
and Audio Expansion Adapter |
CA702 |
Pool
Feed/SDI Output Adaptor |
CBKFC01 |
Pull
Down Board for PDW-530/510 series camcorders |
CBKPC01 |
PC
Card Adaptor for PDW-530/510 series camcorders |
CBKSC01 |
Analog
Composite Input Board for PDW-530/510 series camcorder |
CBKSD01 |
SDI
Output Board for PDW-530/510 series camcorders |
|
