PVM-20L2 20"

SONY

20-inch Trinitron CRT with P22 phosphors
Offers high picture quality and colour reproduction.

High Resolution picture - 600 TVL
Suitable for most general purpose applications.

Modular structure for various optional video decoder boards

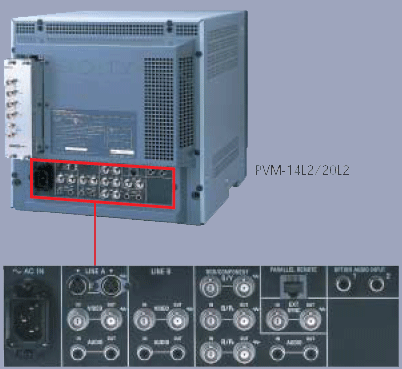

Two slots are available at the back of this monitor to allow the insertion of one optional video decoder board. A few video decoder boards are available such as the current Analogue Component Input Adapter BKM-129X, the SDI 4:2:2 Decoder Adapter BKM-120D, the newly developed SDTI-CP/SDI Decoder Adapter BKM-150CP or the new BKM-155DV i-LINK input Adapter.

High durability
Heavy-duty construction using a metal cabinet helps minimise electromagnetic interference.

Audio monitoring facility
Built-in loudspeaker for sound monitoring.

Worldwide TV standards
This monitor accepts PAL and NTSC signals

4:3/16:9 aspect ratio
Capable of displaying both 4:3 and 16:9 formats.

Auto Chroma/Phase Setup
Facilitates the complex and delicate procedure of chroma/phase adjustment of the monitor automatically. Using broadcast standard colour bars as a reference, this function automatically calibrates chroma and phase.

Switchable colour temperature
Colour temperature can be changed to D65, D93 or user preset (5000 K to 10000 K)

Tally lamp
Single colour for tally lamp is available.

Underscan
Entire picture area displayed to check picture edges.

Blue only
Noise on signals can be precisely evaluated and chroma adjustments can be easily made with the blue only display.

Degauss delay mode
A degauss delay mode is available in this monitor avoiding the surge of current when powering monitors simultaneously in a monitor wall configuration.

Supplied Accessories:

AC power cord

AC plug holder

Tally label

Operation manual

Technical specifications:

Centre resolution	600 TV lines
AG pitch	0.4mm
CRT phosphor	P22
Dimensions (H)	10U
