Power
requirements:
Power consumption:
Operating temperature:
Storage temperature:
Humidity:
Weight:
Dimensions (W x H x D):
Operational Performance
Recording/Playback time:
MAV-777/04:
MAV-777/08:
Search Speed:
SHUTTLE mode:
JOG mode:
VAR mode:
Cue up time:
Time delay1:
Clip:
Digital Video Performance
Frame rate:
Sampling frequency:
Quantization:
Compression:
Digital Audio Performance
Sampling frequency:
Quantization:
Processor Adjustment Range
Video:
Video level:
Chroma level:
Setup:
Hue:
System sync phase:
Audio:
Input level:
Output level:
Output phase:
Downconvert mode:
(selectable)

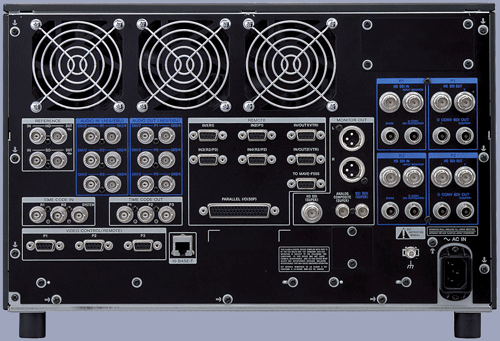

Input/Output
Inputs
HD SDI:
HD reference video:
SD reference video:
Digital audio:
Timecode:
System timecode:
Outputs
HD SDI:
Downconverted SDI:
Digital audio:
Timecode:
Video monitor:
Analog audio L/R:
Headphones:
Remote
RS-422A:
Remote In 1/2/3/4:
Remote In/Out 1/2:
Remote In (TO MAVE-F555):
Remote Parallel I/O:
Ethernet:
TBC Remote P1/P2/P3:
Effects: |
AC 100 V to
240 V, 50 Hz to 60 Hz
550 W
+5°C to +40°C
-20°C to +60°C
25% to 80% (relative humidity)
50 kg
424 x 265 x 650 mm
4 hours
8 hours
Max. ±500 times normal speed
(Maximum speed range ±32/...±100.../±500 selectable)
frame by frame (±4 times)
Up to ±4 times normal speed
Up to ±1 times normal speed
0.5 seconds Timecode: BNC x1 (P1)
Minimum 2 seconds
Minimum duration 1 frame, up to 5,000 clips
1080/59.94i
Y: 74.25 MHz/1.001, Pb/Pr: 37.125/1.001 MHz
10 bits/sample of input-output signal
DCT Intraframe, HDCAM format
48 kHz
20 bits
±3 dB/-оо to 3 dB selectable
±3 dB/-оо to 3 dB selectable
±30 IRE
±30°
0±1H (13.5 ns step)
-оо to 20 dB
-оо to 12 dB
-127 to +128 samples
Edge crop Letterbox Squeeze
BNC (with monitoring loop-through) x1
port (R1) SMPTE 292M/BTA S-004/ ITU-R.BT 709
BNC (with loop-through) x1
BNC (with loop-through) x1
BNC (stereo pair x2) x1 port, AES/EBU
BNC x1 (R1)
BNC x1
BNC x2 ports (P1)
SMPTE 292M/BTA S-004/ ITU-R.BT 709
R1: BNC x1 port (with superimposed TC)
P1: BNC x2 ports (one with superimposed TC)
BNC (stereo pair x2) x1 port, AES/EBU
BNC x1 (P1)
HD-SDI BNC x1 (with superimposed TC) SD-SDI x1
(with superimposed TC) Analog composite x1
(with superimposed TC)
XLR-3-pin type x2
JM-60 stereo phone jack
D-Sub 9-pin (female) x4, Sony 9-pin VTR protocol
or Sony 9-pin Disk protocol
D-Sub 9-pin (female) x2, Sony 9-pin VTR protocol
(for external VTR control)
D-Sub 9-pin (female) x1
D-Sub 50-pin (female) x1, 24 inputs (5 V CMOS),
24 outputs (Open collector)
Ethernet:RJ-45 x1, 10Base-T
D-Sub 9-pin (female) x3, Sony 9-pin VTR protocol
Video Effects
Dissolve, Single Wipe, Split Screen |
