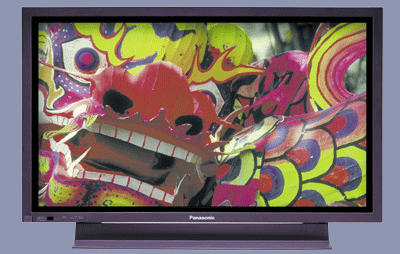

TH-50PHD5UY
50" Widescreen HD Plasma Display |
Panasonic |
Real Gamma Correction
Circuitry – Optimizes luminance gradation within a scene,
providing far better reproduction of low-light elements. (This is
one of the biggest issues with conventional plasma displays.)
Reproduces 1,024 shades of gradation with analog connection and up
to 2,048 shades using the optional TY-42TM4D DVI terminal board
providing a DVI based digital RGB connection.
|
New Phosphors & New Front
Glass Filter – Greatly improves the color purity of blues
and reds (also a weakness in conventional plasma displays)
|
New Asymmetrical Cell
Structure – Dramatically improves light-emitting balance
of the three primary colors(R/G/B), reproducing purer whites while
maintaining a high level of brightness.
|
3:2 Pull-Down –
Automatically detects a 3:2 film-based source, and then uses
stillimage processing for each individual image to achieve clear,
smooth-flowing images.
|
C.A.T.S. (Contrast Automatic
Tracking System) – Automatically senses the ambient light
conditions and adjusts the brightness and gradation accordingly.
Provides the best possible picture contrast for each operating
environment. This feature also helps reduce power consumption and
minimize phosphor aging.
|
Optional RGB Active-Through
Terminal Board – Enables simple and easy connection when
you set up a multi-screen display. (Available soon)
|
Real Black Drive System
– ensures correct black level to produce more natural pictures and
the industry leading 3000:1 contrast ratio
|
Advanced Plasma AI (Automatic
brightness Intensifier) – for 70% increase in peak
brightness thus greater dynamic range and longer useful panel life
(545cd/m2 panel brightness)
|
Expanded H & V frequency
range – fH: 15.6 - 110 kHz; fV: 24-120 Hz
|
Expanded Computer and Video
Signal Compatibility – 480i/p, 575i/p, 720p, 1080/60i,
1080/50i, 1080/24p/24sf
|
3 Dimensional Progressive
Scan Processing – optimized interlace to progressive
performance for clear and blur free moving pictures
|
Optimized color balance –
asymmetrical red, green and blue phosphor cell structure makes
whiter, brighter whites and combined with a special color filter in
the front panel makes it possible to deliver color accuracy to match
the level of the HDTV broadcast standards
|
Improved moving picture
performance – reduces noise in movement and moving
objects
|
User friendly packaging
– compact dimensions, only 3.9" thick, with a thin bezel and
optional hardware make it easy to mount on the wall, place on a
table, suspended from the ceiling or on a stand in the center of a
room
|
Light weight (99 lbs.) with removable
handles makes it relatively easy to handle and mount
|
Low power consumption of 530 Watts (best
for 1366 x 768 PDP)
|
BNC connections for all video inputs
(S-video on standard 4-pin din)
|
Specifications
|
DISPLAY
|
Screen Size
|
50" (127 cm) diagonal
|
Screen Aspect
|
16:9 Wide
|
Number of Pixels
|
1,049,088 (1366 x 768) pixels
|
Pixel Pitch
|
.81 mm
|
Displayable Colors
|
16.77 million colors
|
Contrast
|
3000:1
|
Brightness
|
545 cd/m2
|
Color System
|
NTSC/PAL/SECAM/PAL 60 Hz
|
Audio Output
|
16 Watts (8 Watts x 2)
|
On-Screen Display
|
US English/UK English/Japanese
Spanish/French/German/Italian
|
Screen Coating
|
AR (Anti-Reflection) Coating
|
|
TERMINALS
|
Video Composite Input
|
BNC coaxial x 1, 1 Vp-p/75
ohms (RCA adapter supplied)
|
S-Video Input
|
4-pin S terminal x 1, Y: 1
Vp-p/75 ohms, C: 0.286 Vp-p/75 ohms
|
Audio Input (for Video)
|
RCA phono type connectors (L,R)
(1 set)
|
RGB Input (PC)
|
D-sub 15-pin x 1 (VGA, SVGA,
XGA display and SXGA, UXGA compressed display)
fH: 15.6 - 110 kHz; fV: 24- 120 Hz
|
Audio Input (for PC)
|
M3 stereo plug
|
Component/R,G,B Input
|
BNC coaxial x 5 (R,G,B, H
drive & V drive)
|
RGB,
HD, VD
|
Video: 0.7 Vp-p/75 ohms
|
|
Sync: TTL level/0.3 Vp-p (75
ohms)
|
|
H, V Separate Sync/Composite
Sync
|
|
fH: 15.6 - 110 kHz; fV : 24-
120 Hz
|
Y, Pb
& Pr
|
Y: 1 Vp-p/75 ohms
|
|
Pb/Pr : 0.7 Vp-p/75 ohms
|
|
fH: 15.75/31.5/33.7/45 kHz
|
Audio
Input
|
RCA phono type connectors (L,R)
(1 set)
|
Serial (RS232C)
|
Mini D-Sub 9-pin
|
Tuner In
|
D-Sub 26-pin
|
|
GENERAL
|
Power Supply
|
120 VAC, 50/60 Hz
|
Maximum Current
|
5.5 A
|
Power Consumption
|
530 Watts
|
Dimensions (W x H x D)
|
47.6" x 28.5" x
3.9" (1210 x 724 x 98 mm)
|
Weight
|
99.2 lbs. (45 kg)
|
Operating Temperature
|
34°F - 104°F (0°C - 40°C)
|
Operating Humidity
|
20% - 80%
|
EMI Regulations
|
FCC Part 15 Class A Digital
Equipment
|
Safety Regulations
|
UL6500/C-UL (CAN/CSA-E65-94)
|
Carrying Handles
|
Detachable (Supplied)
|
|
|
|
|
