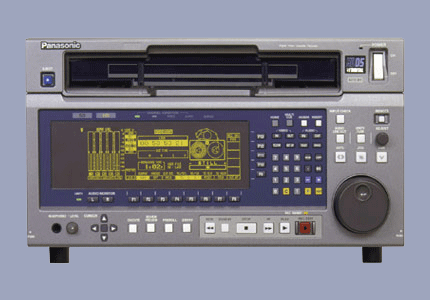

Panasonic
AJ-HD3700H Multi-Format Multi-Standard HD
Cinema Mastering System
|
|
|
HD Studio Quality - Full
bandwidth with full resolution 10-bit recording with no
pre-filtering assures the ultimate high definition mastering
quality.
|
|
Multiple Formats -
Complete recording and playback of ATSC formats including 1080i,
1080p, 1080PsF, 720p and 480i allows integration into almost any
production, post-production environment
|
|
Multiple Frame Rates -
Record/playback rates of 23.98, 24, 25, 29.94, 30, 50, 59.94
offer maximum flexibility in a single system.
|
|
Telecine Ready - Both
1080/24p and 1080/24PsF I/O for maximum compatibility with
various telecine applications.
|
|
Work in PAL - Slew between
24 and 25 Hz frame rates for PAL distribution from a 1080/24p
master.
|
|
SDTV Compatible - Record
and playback 480/60i (NTSC) signals. With the D-5 format's
10-bit, 4:2:2: non-compressed digital component recording system,
the VTR serves as the highest quality possible standard
definition recorder.
|
|
Full Editing Capability -
No matter the format or ATSC standard, full editing capability
is assured. Standard RS-422 protocol means plug and play with a
variety of edit systems, even pre-read in standard definition
D-5.
|
|
Unsurpassed Audio Capability
- 8 discreet audio digital channels for 5.1 surround sound +
stereo. High quality digital audio with complete editing
capability is assured with 8-channel (24-bit) or 4-channel
(20-bit) recording with 48 kHz. Analog in/out is built-in.
|
|
Dolby-E Compatible - This
industry standard capability is built-in and ready to go without
modification.
|
|
Metadata Ready - Standard
metadata/ancillary data support without sacrificing audio
capabilities.
|
|
Standard D-5 Cassette - Up
to 124 minutes in 1080i, 720p, 480i; 155 minutes in 1080/24p;
and 149 minutes in 1080/50i, 1080/25p.
|
|
Format Conversion Built-in
- Optional built-in format converter (AJ-UDC3700) provides up-
and down-conversion capability. Simultaneous HD and SD output
signals.
|
|
Backwards Compatibility -
Existing D-5 and D-5 HD tapes can be played, recorded, and
edited assuring complete accessibility to existing libraries of
D-5 material.
|
|
The AJ-HD3700H VTR meets all high
quality HD and SD production requirements in one VTR. HD studio
quality is assured by full bandwidth (1920x1080) in 1080i, and
4:2:2 digital 10-bit component recording, plus 1080/24p and
standard definition non-compressed 480i. Metadata recording and
playback is built in without sacrificing audio channels and
conversion between formats is as simple as an optional converter
card set. With a newly designed, easy-to-use front panel
operation, full editing capability, and lower power consumption,
the AJ-HD3700H is designed for integration into today's modern
post, and production facilities. The advantage of reduced rack
space with the 5 RU profile means less real estate devoted to
multiple VTRs. The AJ-HD3700H provides the flexibility of having
a single machine function in both HD and SD, plus the popular
1080/24p and 1080/24PsF. With the optional built-in format
converter card, SD to HD and HD to SD conversions are handled
internally - without the need for outboard gear.
Designed specifically with HD
Cinema in mind, the AJ-HD3700H along with the optional built-in
format converter card combines all the functionality of many
VTRs into a single system. As part of an integrated telecine
system, this powerful VTR provides superior picture quality with
full resolution recording and playback, and the multiple frame
rates means mastering in one format and outputting in another
format. Frame-rate, audio, and time code conversions are easily
handled inside the machine. 8-channel audio and Dolby-E
capability are ideal for surround sound, stereo, and SAP
programming.
Teamed with DVCPRO HD, the
AJ-HD3700H is the ultimate High Definition mastering VTR. By
preserving the original recorded resolution through multiple
generations, the AJ-HD3700H is the ideal solution in an editing
environment where the highest picture quality must be maintained
throughout the editing process.
With multiple frame rates,
multiple formats, metadata capability built-in, 8-channels of
audio and available format conversion, it's just quite possible
the AJ-HD3700H could be the only mastering VTR needed in any
production/post-production facility. A true Mastering VTR
designed from the ground up to support High Definition video, HD
cinema and digital projection.
|
Дополнительные
аксессуары:
|
AJ-UDC3700
|
Format Converter Card for
AJ-HD3700H
|
|
AJ-MA37
|
Rack Handles for AJ-HD3700H
|
|
RSK-L
|
Rack Slides for AJ-HD3700H
|
|
Specifications:
|
| |
|
GENERAL
|
|
Power Source
|
100-120 VAC 50/60 Hz
|
|
Power Consumption
|
330 Watts
|
|
Operating Temperature
|
5-40° C
|
|
Operating Humidity
|
10-90% (non-dew)
|
|
Weight
|
Approx. 35kg
|
|
Dimensions (W x H x D)
|
424 x 220 x 520 mm; Height:
5U
|
|
Recording Truck
|
Video: 12 track/field,
Audio: 12 track, TC/CTL/CUE track
|
|
Tape
|
D-5 cassette tape
|
|
Max. Rec. Time
(W/AJ-D5C124L)
|
124 min. (1080/59.94i,
720/59.94p, 480/59.94i); 155min. (1080/24p, 1080/23.98p);
149min. (1080/50i, 1080/25p)
|
|
FF /REW Time
|
Within 195 sec. (w/AJ-D5C124L)
|
|
Servo Lock Time
|
Within 1 sec.
|
|
Tape Timer Accuracy
|
+/- 1 Frame
|
|
Editing Accuracy
|
+/- 0 Frame (with time code)
|
|
AT Slow-motion Range
|
Max. -1 to +2 x
|
|
Search Speed
|
Max. +/- 50 x
|
|
|
|
HDTV RECORDING FORMAT
|
|
|
Active Samples/Line
|
Active Lines/Frame
|
|
1080/59.94i, 1080/24p,
1080/23.98p, 1080/25p,
1080/50i
|
Y:1920 / Pb.Pr.:960
|
1080 lines
|
|
720/59.94p
|
Y:1280 / Pb.Pr.:640
|
720 lines
|
|
|
|
Sampling/Quantization
|
10 bit/sample, 4:2:2, Y:
74.25 MHz, Pb.Pr:37.125 MHz
|
|
Recording Format
|
D-5 HD video compression;
Intra-Field/Frame DCT + VLC
|
|
|
|
SDTV RECORDING FORMAT
|
|
Television Format
(480/59.94i)
|
525 line/59.94 field/2:1
Interlace (SMPTE 259M-C)
|
|
Active Sample/Line
|
Y: 720 Pb.Pr: 360
|
|
Active Line/Field
|
255 line
|
|
Sampling/Quantization
|
10 bit/sample, 4:2:2,
Y:13.5MHz, Pb.Pr:6.75 MHz
|
|
Recording Format
|
D-5 non-compressed; Digital
Component Recording
|
|
|
|
DIGITAL AUDIO RECORDING
FORMAT
|
|
Sampling Frequency
|
48 kHz
|
|
Quantization
|
20-bit (4ch) 24-bit (8ch)
|
|
Frequency Response
|
20 – 20 kHz +/-0.5dB
|
|
Dynamic Range
|
More than 100dB (at 1 kHz,
“A” weight)
|
|
Distortion
|
Less than 0.03% (at 1 kHz,
reference level)
|
|
Cross-Talk
|
Less than -80dB (at 1 kHz,
between 2 channels)
|
|
Wow & Flutter
|
Under measurement level
limit
|
|
Head Room
|
20dB/18dB switchable
|
|
Input / Output Level
|
+4dB/0dB/-20dB switchable
|
|
De Emphasis
|
T1:50µsec. T2:15µsec. (On/Off)
|
|
|
|
CUE AUDIO
|
|
Frequency Response
|
100-12 kHz +/-3.0dB
|
|
S/N Ratio
|
More than 44dB (at 3%
distortion)
|
|
Distortion
|
Less than 2% (at 1 kHz
reference signal)
|
|
Wow & Flutter
|
Less than 0.15% (NAB
unlimited)
|
|
Input / Output Level
|
+4dB/0dB/-20dB/-60dB
switchable (Input only)
|
|
Input / Output Level Adj.
Range
|
-8 - +18dB
|
|
|
|
VIDEO INPUT
|
|
HD SDI In
|
BNC x 2 Active through
1.5Gbps (Embedded Audio, TC) (SMPTE 291M/292M)
|
|
SD SDI In
|
BNC x 2 Active through
270Mbps (Embedded Audio, TC) (SMPTE 259M/272M)
|
|
HD Reference In
|
BNC x 2 Through, Analog Tri
Level sync. 75Ω
On/Off
|
|
SD Reference In
|
BNC x 2 Through, Analog
Composite 75Ω On/Off
|
|
|
|
VIDEO OUTPUT
|
|
HD SDI Out
|
BNC x 2 1.5Gbps HD-SDI
output (SMPTE 291/292)
|
|
HD SDI Monitor Out
|
BNC x 1 1.5Gbps (Superimpose)
|
|
SD SDI Out
|
BNC x 2 270Mbps SDI Output
(SMPTE259M/272M)
|
|
SD SDI Monitor Out
|
BNC x 1 270Mbps (Superimpose)
|
|
Analog Composite Out
|
BNC x 2 Analog Composite
|
|
Analog Composite Monitor
Out
|
BNC x 1 Analog Composite (Superimpose)
|
|
|
|
AUDIO INPUT
|
|
Digital Audio In
|
BNC x 4 Ch1/2 Ch3/4 Ch5/6
Ch7/8, AES-3, 75Ω unbalanced
|
|
Analog Audio In
|
XLR (3-pin) x 4 Ch1/2/3/4
Max. +24dBm 600Ω high impedance
|
|
Cue In
|
XLR (3-pin) x 1 Max. +18dBm
600Ω high impedance
|
|
|
|
AUDIO OUTPUT
|
|
Digital Audio Out
|
BNC x 4 Ch1/2 Ch3/4 Ch5/6
Ch7/8, AES-3, 75Ω unbalanced
|
|
Analog Audio Out
|
XLR (3-pin) x 4 Ch1/2/3/4
Max. +24dBm low impedance
|
|
Cue Out
|
XLR (3-pin) x 1 Max. +18dBm
low impedance
|
|
Monitor Out
|
XLR (3-pin) x 2 L/R Max.
+24dBm low impedance
|
|
Headphones Out
|
Level : Variable Control
|
|
|
|
OTHERS
|
|
Time Code In
|
XLR (3-pin) x 1 2.4±1.4Vp-p
10kO balanced
|
|
Time Code Out
|
XLR (3-pin) x 1 2.0Vp-p
low-impedance balanced
|
|
WFM Out
|
BNC x 1 RF ENV(Ch 0,1,2,3)
/ RF EYE (Ch 0,1,2,3)
|
|
|
CTL (R/P CONF) / TC
Selectable
|
|
SD Sync. Output
|
BNC x 1 Black Burst
|
|
HD Sync. Output
|
BNC x 1 Analog HD Tri Level
sync. (+/- 0.3V)
|
|
|
|
REMOTE
|
|
RS-422A In
|
D-Sub 9-pin x 1 RS-422A
interface
|
|
RS-422A Out
|
D-Sub 9-pin x 1 RS-422A
interface
|
|
RS-422A In/Out
|
D-Sub 9-pin x 1 RS-422A
interface
|
|
RS-232C Out
|
D-Sub 25-pin x 1 RS-232C
interface
|
|
Parallel
|
D-Sub 50-pin x 1 Parallel
interface
|
|
V/A Control
|
D-Sub 15-pin x 1 Video
Remote
|
|
Control Panel
|
20R x 1 Connection for
Front Control Panel
|
|
|
|
VIDEO OUTPUT SIGNALS
WITH OPTIONAL FORMAT CONVERTER
|
|
Tape Format
|
SDTV OUTPUT
|
HDTV OUTPUT
|
|
1080/59.94i
|
480/59.94i or 480/59.94p
|
1080/59.94i
|
|
1035/59.94i
|
480/59.94i or 480/59.94p
|
1080/59.94i
|
|
1080/50i
|
576/50i
|
1080/50i or 1080/25p
|
|
1080/24p
|
480/59.94i or 480/59.94p or
576/50i
|
1080/59.94i or 1080/23.98p
or 1080/23.98PsF or 1080/25p or 720/59.94p
|
|
1080/25p
|
576/50i
|
1080/50i or 1080/25p
|
|
720/59.94p
|
480/59.94i or 480/59.94p
|
720/59.94p
|
|
480/59.94i
|
480/59.94i or 480/59.94p
|
1080/59.94i
|
|
|
|
|
|
