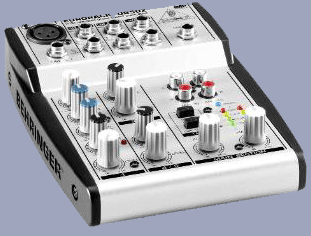

| EURORACK
UB502 |
|
|
Ultra
low-noise ULN design, highest possible headroom, ultra-transparent
audio |
|
|
1
new state-of-the-art, studio-grade IMP “Invisible” Mic Preamp
with:
- 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
- Ultra-wide 60 dB gain range
- Lowest possible distortion 0.0007% (20 Hz - 20 kHz) |
|
|
Effective,
extremely musical 2-band EQ and peak LED on mono channel |
|
|
5
balanced high-headroom line inputs |
|
|
State-of-the-art
4580 operational amplifiers provide lowest noise and distortion—better
than 4560 op amps |
|
|
Main
mix outputs plus separate headphones and stereo tape outputs |
|
|
Tape
inputs assignable to main mix or phones outputs |
|
|
High-quality
sealed rotary controls from ALPS® for long-term reliability |
|
|
External
power supply for noise-free audio and superior transient response |
|
|
Extremely
rugged steel construction ensures long life even under the most
demanding conditions |
|
|
Manufactured
under ISO9000 certified management system |
