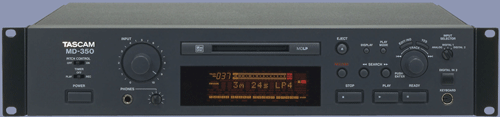

The MD-350 is an extensively equipped minidisk
recorder which combines advanced MD technology and easy operation in one.
This system includes recording and reproduction functions which make even
the work of professionals easier. Take for example the level-controlled
sync-record function, the automatic generation of track numbers (auto-track)
and silence (auto-space), not to mention the auto-ready (automatic pausing
at the beginning of each track) and auto-cue functions (for finding the
audio beginning of the selected track). With pitch-control, the pitch can
be changed by up to ±12% in order to be adjusted to the pitch of other
audio sources. The integrated sampling monitor ensures that signals
received at the digital input are output at the analogue output and vice
versa – in fact the MD-350 functions here as a D/A and A/D converter.
Tracks can be edited using a
wide range of functions, the undo function allows the last step to be
reversed, and tracks can also be copied in no time at all. 20-bit A/D and
D/A converters and ATRAC version 4.5 together guarantee high sound quality.
With its multifarious terminals
and carefully designed details, such as a digital input at the front panel
and the possibility of connecting a computer keyboard, the MD-350 fits
right in with any professional environment.
Main features:
|
 20-bit
A/D and D/A converters and ATRAC 4.5 compression system for
superior sound quality
Analogue
(XLR balanced and RCA unbalanced) and digital (SPDIF, optical)
input/output
Optical digital input (TOSLINK) on
the front panel
Sample rate converter allows 48kHz
and 32kHz digital signals to be transferred to 44.1kHz MiniDisc
Sampling Monitor function
Comprehensive on-disc editing
functions: divide, erase, move, combine, undo, title, title copy
and overwrite
Title memory: 100 characters per
song, 1,700 characters per disc
Keyboard connector (PS/2) for easy
titling on the front panel
|
|
Four
recording/playback modes:
 SP
(Stereo),
MONO (Mono),
LP2 (double recording/playback
time),
LP4 (four times recording/playback
time)
Auto-track function assigns track
numbers automatically during recording
Sync-record, Auto-space,
Auto-ready and Auto-cue functions
Pitch Control (±12% in SP, Mono
and LP4 modes)
Copy protection (SCMS)
Timer for deferred recording/playback
Program play (up to 25 tracks) or
Shuffle play
Repeat function (single track, all
tracks, A–B)
Wireless remote control RC-32
included
|
Specifications:
| General |
| Format |
|
MiniDisc |
| Tracks |
|
2
Tracks (stereo, mono) |
| Recording
system |
|
Magnetic
field modulation overwrite system |
| Recording/playback
time |
|
SP:
80 minutes max.
LP2: 160 minutes max.
LP4: 320 minutes max.
Mono: 160 minutes max. |
| Pitch
control |
|
±12%
(SP, Mono, LP4) |
| Compression
system |
|
ATRAC
4.5 (Adaptive Transform Acoustic Coding) |
| Sampling
frequency |
|
44.1
kHz |
| Frequency
response |
|
20
Hz - 20 kHz (±0.5 dB) |
| Signal-to-noise
ratio |
|
>94
dB (playback, 1 kHz, A-weighted) |
| Dynamic
range |
|
>94
dB (playback, 1 kHz, A-weighted) |
| Total
harmonic distortion |
|
<0.013% |
 |
| Digital
connections |
| Inputs
1 and 2, optical |
|
TOSLINK,
IEC 60958 Type II (SPDIF) |
| Output,
optical |
|
TOSLINK,
IEC 60958 Type II (SPDIF) |
| Keyboard
connector |
|
Mini-DIN,
6-pin |
|
| Analog
connections |
| Inputs
(balanced) |
|
2
x XLR |
| Nominal
level |
|
+4
dBu |
| Impedance |
|
10
kOhm |
| Inputs
(unbalanced) |
|
2
x RCA |
| Nominal
level |
|
-10
dBV |
| Impedance |
|
50
kOhm |
| Outputs
(balanced) |
|
2x
XLR |
| Nominal
level |
|
+4
dBu |
| Impedance |
|
150
Ohm |
| Outputs
(unbalanced) |
|
2x
RCA |
| Nominal
level |
|
-10
dBV |
| Output
impedance |
|
600
Ohm |
| Headphones
output |
|
6.3
mm stereo jack |
| Max.
output power |
|
2x
25 mW |
| Nominal
impedance |
|
32
Ohm |
|
| Power
supply and other specifications |
| Power
supply |
|
230
V AC, 50 Hz |
| Power
consumption |
|
13
W |
| Dimensions
(W x H x D) |
|
483
mm x 94 mm x 313 mm |
| Weight |
|
5.5
kg |
|
