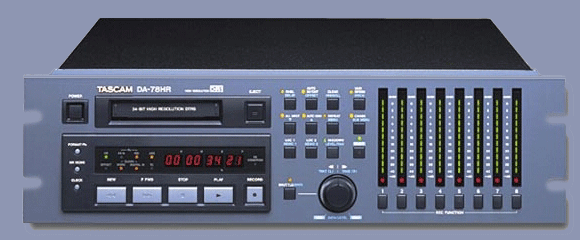

DA-78HR
Professional
24-bit Digital Multitrack Recorder
|
TASCAM
|
|
|
The DA-78HR is the world's first
24-bit modular digital multitrack (MDM) recorder. Designed to add the
power of high-resolution digital recording to project studios and
commercial facilities, the DA-78HR represents the latest generation of
TASCAM's DTRS recording format. DTRS machines have become a standard
worldwide in studios of all levels, with proven reliability, quick
response, and unparalleled audio quality. The DA-78HR takes it to the next
step, offering 24 bit audio and built-in time code capabilities. Also,
built-in digital mixing and onboard S/PDIF digital I/O for transfers from
DAT or CD can be used for creating a quick mixdown, or for bouncing tracks
externally. The DA-78HR can work with any other DTRS machine, making it
perfect for studios adding more tracks to their recording system.
| • |
24
bit A/D and D/A converters |
| • |
>104dB
Dynamic range |
| • |
20Hz
- 20kHz frequency response ±.5dB |
| • |
Compatible
with earlier DTRS recorders |
| • |
1
hr. 48 min. recording time on a single 120 tape |
| • |
On-Board
SMPTE synchronizer: chase or generate time code |
| • |
On-Board
support for MIDI Machine Control |
| • |
Internal
digital mixer with level and pan for internal bouncing, or for quick
mixes |
| • |
Track
slip from -200 to +7200 samples |
| • |
Expandable
up to 128 tracks (16 machines) |
| • |
Word
Sync In/Out/Thru |
| • |
Analog
output on DB25 balanced and RCA unbalanced |
| • |
Digital
output on TDIF and 2 channels of SPDIF |
|
Frequency Response
|
20Hz-20kHz ±0.5dB
|
|
Record Time
|
108 minutes (NTSC 120
Hi8 tape)
|
|
Signal to Noise Ratio
|
>104dB DTRS-HR
>100 dB DTRS
(Fs=48kHz, 22k LPF and A Weight)
|
|
Total Harmonic
Distortion
|
<0.004%<>
(DTRS-HR)
<0.005% (dtrs)
|
|
Channel Separation
|
>90dB
1kHz BPF
|
|
Wow & Flutter
|
Unmeasurable
|
|
Audio I/O
|
Analog
RCA Unbalanced
DB25 8 Channel Balanced
|
|
Clock I/O
|
TDIF In/Out
Word Sync Out
DTRS Sync In/Out
|
|
Control I/O
|
DTRS Sync
MIDI Machine Control
|
|
Time Code I/O
|
Follow/Generate MIDI
Time Code
|
|
Power Consumption
|
34W
|
|
Weight
|
8.1Kg
|
|
Optional Accessories
|
IF-AE8 AES/EBU
digital audio converter
Convert eight channels of digital audio between the TDIF-1 and
SDIF-2 format. For use with DASH format digital multitrack
recorders.
|
|
|
|
|
