Optical
Leader Sensing for Quick Auto Reverse |
| • |
RS-232
Serial Control Port |
| • |
±10%
Pitch Control Independent for Each Deck |
| • |
Independent
Unbalanced RCA Analog I/O for Each Deck |
| • |
RTZ
(Return To Zero) Function on Each Deck |
| • |
RC-322A
Wired Remote Included |
| • |
Headphone
Output w/ Level Control |
| • |
Optional
LA-322 Balancing Kit |
| • |
Optional
WR-7000 Cascade Cables |
| • |
3-U
Rack Mountable Dual Bi-Directional Cassette Deck |
| • |
Both
Cassette Wells Record Capable for Simultaneous Masters |
| • |
Normal
(1x) and High (2x) Speed Dubbing Capability |
| • |
Dolby
B and C with HX Pro Headroom Extension |
| • |
Electronic
Tape Counter |
| • |
Record
Mute Function (On RC-322A Only) |

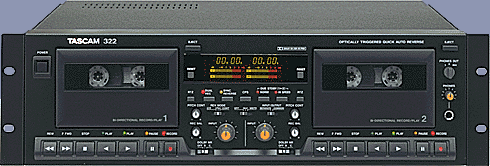

The 322 deck was built on our existing
technology, adding features that contractors have specifically requested.
The result is a deck that fits into a wide variety of applications, from
music studios, boardrooms, house of worship, live venues, and more.
The 322 transports use an optical sensor
for detecting leader on tapes. When the tape approaches the leader tape
from the cassette, it will immediately flip the tape. This minimizes the
amount of time lost when switching sides, since the deck won't have to
pass through the leader to the end of the reel, then back to the
recordable tape again. This makes the 322 the ideal machine for logging or
long-form recording.
An RS-232 port on the back of the 322
allows serial control of the deck from the various control systems on the
market. This is ideal for board rooms, lecture halls, or advanced home
theater systems, and more.
Like the 302, the 322 offers independent
audio input and output for each well, allowing total control over each
deck. The 322 can be set up so that one deck plays a tape while the other
records an external source. This is perfect for recording a meeting and
playing audio sources back, or playing music from tape and recording a
performance on top of it. If the situation calls for a common I/O
structure, you can switch it easily on the front panel. This makes it easy
for creating dual masters, or saving inputs on a mixer.
The 322 also offers Return To Zero function
for easier cueing, ±10% pitch control to make changes in speed, headphone
output with level control, and a wired remote as standard. The optional
LA-322 kit adds balanced ports to the 322.
|
