| System
215 DMT II |
Tannoy |

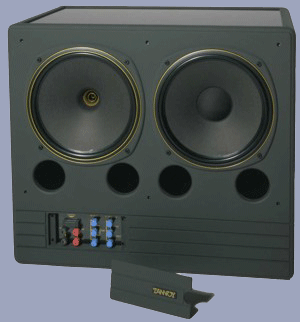

| Designed
to be either freestanding or soffit-mounted, the System 215DMT II offers a
powerful and articulate performance for studio main monitoring. Based
around the 15" Dual Concentric™ drive unit, the system supplements
low frequencies through the addition of a 15" bass unit that can be
used to either operate below 250Hz or to run in parallel with the Dual
Concentric™ driver. This allows optimization of the system for the best
bass response and maximum SPL. Each drive unit is mounted into its own
separate chamber within the cabinet and is computer-optimized with twin
laminar-flow reflex port tubes. The 15" point-source Dual Concentric™
drive unit ensures consistent and stable imaging across a wide listening
area, while its controlled directivity minimizes the effect of reflections
from room boundaries. Crossover components are over-specified and include
a vacuum impregnated air-core inductor, copper capacitors for flux
modulation control, and a Mega HF capacitor. Internal wiring is
custom-woven and the split crossover is biwireable if desired. Whether
used as part of a modern multi-channel or traditional two-channel system,
the System 215DMT II provides superior performance for the professional
recording studio.
PERFORMANCE
| Sensitivity |
101 dB SPL /
2.83 V @1 m (half space) |
| Nominal
Impedance |
4/8 ohm |
| Frequency
Response |
35 Hz - 25
kHz |
| Power
Handling (RMS/Programme) |
250 / 500
Watts |
| Recommended
Amplifier Power |
150 to 500
Watts into |
DRIVE UNITS
| Driver Type |
15"
Tannoy dual Concentric™ |
| Supplementary
Bass Unit |
15"
bass unit |
| Dispersion |
90° conical |
CROSSOVER
| Frequency |
250 Hz &
1.5 kHz |
CONSTRUCTION
| Enclosure
Type |
Optimized
bass-reflex loaded |
| Volume |
300 Litres |
| Dimensions |
30.94"
x 35.672 x 21.85" |
| Weight |
187.0 lbs |
| Finish |
Velti
shadow grey soft texture finish, metallic speckled finish on top,
bottom and sides |
| Magnetically
Shielded |
Available
upon request at additional cost. |
|
 |
|
|
|
