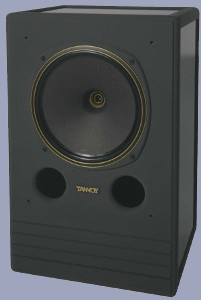

| System
15 DMT II |
Tannoy |
| Suitable
for mid-field or main monitoring, the System 15DMT II is a versatile and
powerful system offering the superb performance of Tannoy's 15"
point-source Dual Concentric™ drive unit. This drive unit offers output
with the ideal spherical wavefront, meaning a cohesive soundstage whether
you are mixing for two channel or modern multi-channel formats. In
addition, the System 15DMT II is capable of high sound pressure levels
without compression and remains unfatiguing over extended listening
periods. The crossover is split into separate HF and LF sections to
minimize component interaction and can be bi-amplified by those looking
for the optimum performance. Carefully chosen crossover components are
used to minimize distortions caused by component saturation. These include
Copper capacitors, HF Mega capacitor, and vacuum impregnated air-core
inductor. Like all Tannoy System Series enclosures, the System15DMT II
uses comprehensive internal bracing to reduce panel resonances, and
rounded baffle edges to minimize HF diffraction effects.
PERFORMANCE
| Sensitivity |
98 dB SPL
/ 2.83 V @ 1 m (half space) |
| Nominal
Impedance |
8 ohms |
| Frequency
Response ± 3 dB |
38 Hz - 25
kHz |
| Power
Handling (RMS/Programme) |
200 / 400
Watts |
| Recomended
Amplifier Power |
50 to 400
Watts into 8 ohms |
DRIVE UNITS
| Driver Type |
15"
Tannoy Dual Concentric™ |
| Dispersion |
90° conical |
CROSSOVER
CONSTRUCTION
| Enclosure
Type |
Optimized
bass-reflex loaded |
| Volume |
140 Litres |
| Dimensions |
33.07"
x 21.65" x 17.32" |
| Weight |
99.2 lbs |
| Finish |
Velti shadow
grey soft texture finish, metallic speckled finish on top, bottom
and sides |
| Magnetically
Shielded |
Available
upon request at additional cost. |
|
 |
|
|
|
