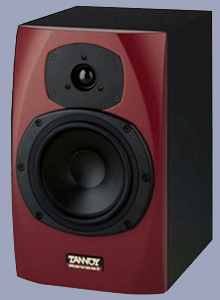

For those on a budget, the
Reveal provides a high quality monitor with real high-end features. The
distinctive cabinet has been designed to offer increased structural
integrity and reduced HF diffraction effects. Its unique 1 ¼"
thick contoured MDF baffle provides a solid foundation for drive unit
mounting as well as increasing overall stiffness. This means a clean and
articulate performance for whatever project you have in mind. Reveal's
drive units include a 1" soft dome tweeter and 6 1/2" bass unit
manufactured in-house by Tannoy, ensuring quality and consistency in use.
Both units are also magnetically shielded, so the Reveal can be positioned
close to video monitors if desired. High power handling capability coupled
with above average sensitivity means that Reveal can produce high SPL's
without distortion. There is no better value on the market today.
PERFORMANCE
| Sensitivity |
90 dB / 2.83
V @ 1 m (half space) |
| Nominal
Impedance |
6 ohms |
| Frequency
Response ± 3 dB |
65 Hz - 20
kHz |
| Power
Handling (RMS/Programme) |
50 / 100
Watts |
| Recommended
Amplifier Power |
30 to 100
Watts into 8 ohms |
DRIVE UNITS
| High
Frequency |
1" soft
dome tweeter, shielded |
| Low
Frequency |
6.5"
bass driver, shielded |
| Dispersion |
120° |
CROSSOVER
CONSTRUCTION
| Enclosure
Type |
Optimized
bass-reflex loaded |
| Volume |
12 Litres |
| Dimensions |
13.38"
x 8.27" x 10.24" |
| Weight |
15.4 lbs |
| Finish |
Red satin
baffle
Grey suedette vinyl sides and back. |
| Front
Baffle Panel |
1
1/4" MDF |
| Magnetically
Shielded |
Included |
|
