Tannoy

FEATURES

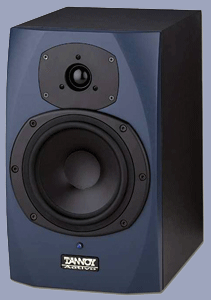

One of the most popular monitors from Tannoy's line is the Reveal Active. It incorporates some rather neat features that can often be overlooked when confronted with the usual "monitor wall." Its two high quality drive units are mounted in a 1 1/2" thick (!) MDF baffle, which has its edges shaped to reduce diffraction, an effect that causes poor imaging in monitors with conventional square-edged baffles. The system uses a 1" shielded soft dome tweeter and 6 ½" shielded long-throw woofer. An interesting feature (and rather rare nowadays) is that the drive units are actually made in-house by Tannoy. This ensures a quality and consistency that cannot be guaranteed by OEM drive units made offshore - a cost saving tactic used by many other manufacturers. Sonic excellence at an affordable price is the hallmark of the Reveal Active.

PERFORMANCE

Inputs	32 k ohm balanced on combined XLR/jack
Input Sensitivity	0.775 V rms (0 dBu)
Frequency Response ± 3 dB	62 Hz - 20 kHz
Peak SPL (pair @ 1m)	114 dB
Bulit In Amplifier (Power RMS)	LF channel (4 ohm load) 50 W rms HF channel (4 ohm load) 50 W rms

DRIVE UNITS

High Frequency	1" soft dome tweeter, shielded
Low Frequency	6.5" bass driver, shielded
Dispersion	120°

CROSSOVER

Frequency

3 kHz

CONSTRUCTION

Enclosure Type	Optimized bass-reflex loaded
Volume	12 Litres
Dimensions	13.38" x 8.27" x 10.24"
Weight	18.7 lbs
Finish	Azure blue satin baffle Grey suedette vinyl sides and back
Front Baffle Panel	1 1/4" MDF
Magnetically Shielded	Included
