General Description

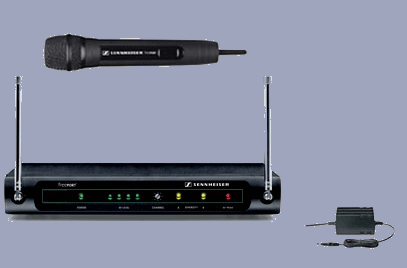

The Vocal Set includes a hand-held transmitter with a dynamic capsule, cardioid and a diversity receiver. The transmitter is exceptionally comfortable to hold and provides a lively and assertive sound.
Features
4 switchable UHF frequencies for interference-free reception
Absolutely safe transmission
Diversity Technology for highest reception quality
Adjustable Squelch for undisturbed operation
Receivers built in robust metal housing`
Dynamic processor for cristal-clear sound
Delivery Includes:
1 handheld transmitter SKM 1
1 diversity receiver EM 1
1 stand adapter
1 power supply
1 user manualTechnical Data
RF frequency range UHF
Transmission/receiving frequencies 4
Switching bandwidth 2 MHz
Frequency response 80...16.000 Hz
Signal-to-noise ratio 95 dB(A)
THD, total harmonic distortion < 1%
Audio output level (balanced) XLR, +16 dBu
Audio output level (unbalanced) Jack, +10 dBu
Power supply 12 VDC nom
Dimensions (Receiver) 35 x 213 x 98 mm
Weight (Receiver) 570g
RF output power 10 mW
Power supply (Handheld transmitter) 9V PP3
Operating time 10 h
Dimensions (Handheld transmitter) 285mm, d=35/50 mm
Weight (Handheld transmitter) 210 g w/o battery
Transducer; Microphone type (Handheld transmitter) dynamic
Pick-up pattern cardioid
|
