Universal
tube microphone
-
Pressure gradient transducer with the large diaphragm capsule
from
the
legendary U 47 and M 49
-
Transformerless circuitry
-
Low self noise level
-
Comes with swivel stand mount made of metal, universal power
supply,
and cable in an attractive aluminium case

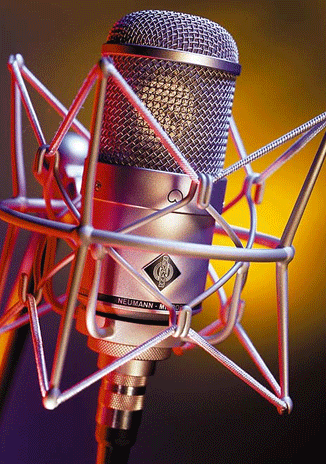

The M 147 Tube is a vacuum tube condenser microphone with
cardioid characteristic. At the heart of this microphone is
the K 47 dual diaphragm capsule, inherited from this model's
now legendary predecessors, the U 47 and the M 49.
Following the capsule is a tube that functions as an impedance
converter. The next stage is an efficient, transformerless
output circuit, that guarantees an extremely low self-noise
level. Note: This innovative combination of current tube
technology with the most advanced solid-state circuitry was
decisive in awarding the 1997 TEC Award to the related M 149
Tube mic.
The M 147 Tube can feed extremely long microphone cables
without affecting the quality of the audio signal. Like all
Neumann tube microphones, the M 147 Tube comes with an elegant
satin nickel finish.
The microphone is delivered as a complete set in a
high-quality aluminum case. Included with the microphone are a
microphone cable, a metal swivel mount for a mic stand, and a
compact universal power supply for standard mains sockets. Our
modern manufacturing methods makes it possible to offer this
complete set at a very attractive price.
| Acoustical
operating principle |
Pressure
gradient transducer |
| Directional
pattern |
Cardioid |
| Frequency
range |
20
Hz...20 kHz |
| Sensitivity
at 1 kHz into 1 kohm |
20
mV/Pa |
| Rated
impedance |
50
ohms |
| Rated
load impedance |
1000
ohms |
| Equivalent
SPL CCIR 468-3 |
24
dB |
| Equivalent
SPL DIN/IEC 651 |
12
dB-A |
| S/N
ratio CCIR 468-3 |
70
dB |
| S/N
ratio DIN/IEC 651 |
82
dB |
| Maximum
SPL |
114
dB for THD < 0.5 %
134 dB for THD < 5 % |
| Maximum
output voltage |
8
dBu |
| Dyn.
range of the mic. amplifier DIN/IEC 651 |
102
dB for THD < 0.5 %
122 dB for THD < 5 % |
| Supply
voltage |
Power
supply N 149 A |
| Matching
connector |
Microphone:
DIN 8F
Power Supply: XLR 3F |
| Weight |
460
g |
| Diameter |
57
mm |
| Length |
142
mm |
