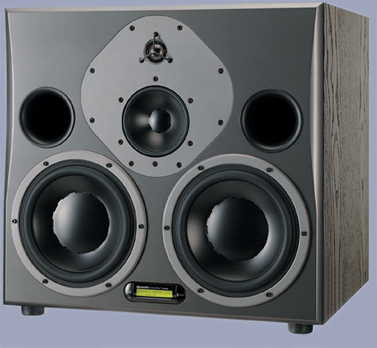

| Model |
AIR 25 |
| Model |
AIR 25 |
| AIR
Monitors (master and slave) |
| System |
3-way
Active Nearfield monitor |
| Frequency
response |
28 Hz
–22 kHz: |
| Max SPL 1m
pair (IEC Short term) |
134 dB
peak |
| Max SPL 2m
5.1 (IEC Short term) |
132 dB
peak |
| Max SPL 1m (IEC
Long Term) |
107 dB RMS |
| Precision of
monitor matching |
+/- 0.2 dB |
| Port tuning
frequency |
35 Hz |
| Internal
cabinet volume |
68 liters |
| Bass
principle |
Bass
reflex |
| Crossover
frequency |
400 Hz (DSP
generated) and 2400 Hz (DSP generated) |
| Crossover
slope |
(LF/MF, MF/HF)
12/6 dB/Oct, 12/6 dB/Oct |
| Tweeter |
Esotar 28
mm / 1.1" soft dome, neodymium magnet, rear chamber, magnetic
fluid, 4mm steel front, pure alu wire voice coilcr |
| Midrange |
145 mm /
5,5", one-piece molded polyprop cone, 38 mm / 1,5" pure
alu voice coil |
| Woofer |
2x240 mm /
9,5", one-piece molded polyprop cone, 100 mm / 4" pure alu
voice coil |
| Mains Voltage |
100 to 240
VAC, 50 to 60 Hz (select) |
| Power
Consumption Idle |
45 W @ 1/8
max power (IEC 60065) |
| Finish Amp |
Black
painted back plate |
| Finish
Cabinet |
Black ash
with dark gray MDF baffle |
| Dimensions (H
x W x D) |
510 x 535
x 450 mm / 20” x 21” x 17.7” |
| Depth incl.
amp and driver |
490 mm /
19,3” |
| Weight |
46 kg /
100 lbs |
| Amplifiers |
| Tweeter |
300 W amp |
| Midrange |
300 W amp |
| Woofer |
2x300 W
amp |
| System
sample rates |
| Internal
sample rate |
192 and
176,4 via Dual Wire (optional Digital Card required) and 96, 88.2,
64, 48, 44.1 or 32 kHz |
| AIR
Masters only |
| I/O
Connectors |
XLR (2
channels AES/EBU in) 3 x RJ45 proprietary TC LINK |
| Formats |
AES/EBU
(24 bit) |
| Word clock
input |
BNC, 75
Ohm, 0.6 to 10 Vpp |
| Display |
2 x 16
character dot matrix |
| Operation |
Menu
system / four buttons |
| Analog
input option |
| Input
connectors |
XLR
balanced (pin 2+, pin 3-) |
| Impedance |
10/3 k Ohm
(Balanced/unbalanced): |
| Selectable
Full Scale Input level |
+9, +15,
+21, +27 dBu |
| Dynamic Range |
> 113
dB typ. (unweighted), BW: 20-20kHz |
| THD+N |
< -105
dB typ. @ 1 kHz, -3 dBFS |
| Crosstalk |
< -120
dB, 20 Hz to 20 kHz |
| A to D
Conversion |
24 bit (Dual
bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz) |
| AIR
Slaves only |
| I/O
Connectors |
2 x RJ45
proprietary TC LINK |
| General |
| EMC |
| Complies with |
EN 55103-1
and EN 55103-2, FCC part 15 class B, CISPR 22 class B |
| Safety |
| Certified to |
IEC 60065,
EN 60065, UL 6500 and CSA E60065 CSA FILE #LR108093 |
| Environment |
| Operating
Temperature |
32° F to
122° F (0° C to 50° C) |
| Storage
Temperature |
-22° F to
167° F (-30° C to 70° C) |
| Humidity |
Max. 90 %
non-condensing |
| Warranty |
| Parts and
labor |
2 year on
parts and labor |
