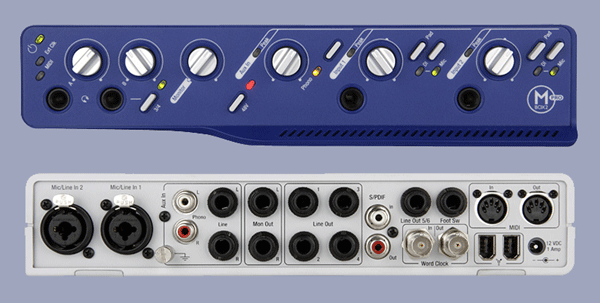

The Mbox® 2 Pro is the ultimate
high-definition portable Pro Tools LE system, packing a wide-range of
analog and digital I/O connections into a mobile audio workstation. Take
it wherever inspiration strikes.
Features
- Professional sound quality
- Powered by FireWire* or included power
supply
- Supports up to 24-bit/96 kHz resolution**
- 6 simultaneous inputs, 8 simultaneous
outputs
- 4 analog inputs (2 XLR/1/4” TRS combo
jacks & 2 1/4” TRS jacks)
- 6 analog outputs (1/4” jacks)
- 2 instrument DI inputs on the front
panel
- 2 channels of S/PDIF digital I/O (RCA)
- Built-in phono preamp input (RCA) for
direct turntable connection
- 1 MIDI input and output (16 channels in/16
channels out)
- MIDI Time Stamping (MTS) support for
superior timing and accuracy
- BNC Word Clock I/O
- Low-latency monitoring
- Dedicated studio monitor outputs with
volume control
- 2 stereo headphone outputs with
independent volume controls
- 48V phantom power for condenser
microphones
*Requires 6-pin
connection for power via FireWire.
**Mbox 2 Pro does not support external sync at 88.2 and 96 kHz sample
rates.
Specifications:
Mic/Line Inputs 1
& 2:
Connector: Two balanced XLR /
1/4" combo jacks with independent gain controls
Mic Phantom Power: 48V
Equivalent Input Noise: -129 dBu
Frequency Response: +/- 0.1 dB
Dynamic Range: 105 dB / 107 dB A-weighted
THD + N (Mic/Line): 0.001% (-100 dB)
THD + N (Mic w/40 dB gain): 0.005% (-86 dB)
Input Sensitivity, Pad off: 1 dBu minimum gain,
-39 dBu maximum gain
Input Sensitivity, Pad on: 21 dBu minimum gain,
-19 dBu maximum gain
Input Impedance: 3.5 kOhm mic, 10 kOhm line
DI Inputs:
Connector: Two unbalanced 1/4" jacks (on front) with independent
gain controls
Frequency Response: +/- 0.1 dB
Dynamic Range: 105 dB / 107 dB A-weighted
THD + N: 0.008% (-82 dB)
Input Sensitivity, Pad off: 1 dBu minimum gain, -39 dBu maximum gain
Input Sensitivity, Pad on: 21 dBu minimum gain, -19 dBu maximum gain
Input Impedance: 5 MOhm
Aux Line Inputs 3/4:
Connector: Two balanced 1/4" jacks
Frequency Response: +/- 0.1 dB
Dynamic Range: 104 dB / 106 dB A-weighted
THD + N: 0.001% (-100 dB)
Input Sensitivity: 10 dBu minimum gain, -10 dBu maximum gain
Input Impedance: 16 kOhm
Phono Inputs 3/4 *:
Connector: RCA pair
Frequency Response: +/- 1 dB
Dynamic Range: 97 dB / 104 dB A-weighted
THD + N: 0.01 % (-80dB)
Input Sensitivity: -20 dBV minimum gain, -40 dBV maximum gain @ 1 kHz
Input Impedance: 47 kOhm resistive, 150pF capacitive
Line Outputs (1-6):
Connector: Channels 1-4: Four impedance balanced 1/4" jacks.
Channel 5-6: One unbalanced stereo 1/4" jack
Frequency Response: +/- 0.25 dB
Dynamic Range: 104 dB / 109 dB A-weighted
THD + N: 0.0015% (-96 dB)
Output Sensitivity: 4 dBV
Monitor Outputs:
Connector: Two 1/4" impedance balanced jacks
Frequency Response: +/- 0.25 dB
Dynamic Range: 106 dB / 110 dB A-weighted
Output Sensitivity: 6 dBV at max gain 100 kOhm load
Headphone Outputs:
Connector: Two 1/4" stereo jacks: one is channel 1&2, one is
channel 1&2 or 3&4 (switchable). Independent volume controls.
Output Sensitivity: 2 Vms @ 600 Ohm load, maximum gain
Frequency Response: +/- 0.25 dB
Dynamic Range: 104 dB / 109 dB A-weighted
Digital
Specifications:
Supported Sample Rates**: 44.1, 48, 88.2, 96 kHz
Maximum Word Length: 24 bit
S/PDIF: RCA jacks
Word Clock: BNC jacks
Host Connection: Two IEEE-1394a (FireWire) jacks.
MIDI: Two 5-pin MIDI DIN connectors
Size / Weight / Power
Height: Including lip: 2.26 inches / 5.74 cm.
Width: 10.28 inches / 26.11 cm.
Depth: Including lip, excluding rear connectors: 9.15 inches / 23.24 cm.
Weight: 3.3 lbs / 1.5 kg.
Power Requirements: Powered off 6-pin IEEE-1394a (FireWire) jack or 9 to
24 Volts DC jack (A/C power adaptor included)
Maximum Power Consumption: 6 Watts
All noise and dynamic
range measurements with 20 Hz to 20 kHz bandwidth at 48 kHz sample rates,
unless otherwise noted.
ADC measured -60 dBFS at 1 kHz with minimum gain setting; DAC with digital
playback at -60 dBFS at 1 kHz.
Frequency response measurements relative to level at 1 kHz.
* RIAA equalization and sensitivity measured at 1 kHz.
** External clock supports up to 48 kHz sample rates
|
