With an extensive range of audio and MIDI I/O,
high-definition audio resolution, the creativity and speed of
industry-standard Pro Tools® software, FireWire connectivity, and a big,
comprehensive bundle of powerful software included free, 003™ Rack
enables you to attain the same high audio production quality as commercial
facilities in your own personal or project studio.
Take advantage of the plethora of I/O to connect and monitor all of your
studio equipment. Its streamlined design will help save space in even the
most gear-packed studio, and give you the freedom to take a professional
Pro Tools system anywhere your creative skills are needed — or inspired.
And with over 60 powerful plug-ins, virtual instruments, compatible
applications, and artist promotion services included, you have everything
you need (and then some) to compose, perform, record, edit, mix, and
master audio for music and desktop post production projects — with truly
professional results.
003™ Rack is professionally engineered to
deliver the stunning clarity of high-definition audio, and durably built
to withstand any knocks and bounces it encounters when your creative
skills are needed on the road.

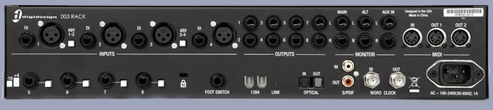

Wide Range of I/O
- High-speed FireWire connectivity
- 18 simultaneous channels of audio I/O
- 24-bit/96 kHz resolution
- 8 analog inputs, 8 analog outputs
- 4 professional mic preamps; 48V phantom
power enabled on channel pairs
- 8 channels of ADAT optical I/O or two
channels of S/PDIF optical I/O
- 2 channels of S/PDIF digital I/O
- 1 MIDI input, 2 MIDI outputs (16
channels in/32 channels out)
- BNC Word Clock I/O
- Dedicated studio monitor output, plus
alternate control room output
- Alternate Source input for external
device monitoring
- Dual headphone outputs

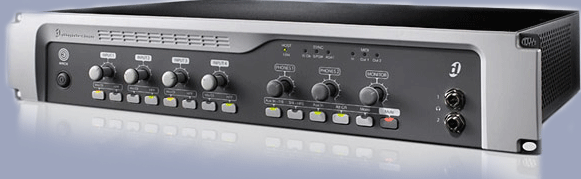

Streamlined Interface
- 2U rackmountable chassis
- 4 individual input gain controls
- 4 discrete high-pass filter switches
- Individual headphone source and level
controls
- Mute switch
Specification:
Mic Inputs:
Connector: Four balanced XLR jacks
Mic Phantom Power: 48V
Equivalent Input Noise: -129 dBu
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 105 dB / 107 dB A-weighted
THD + N: 0.0007% (-103 dB)
Mic EIN: -129 dBu
Input Sensitivity: +2.2 dBu
Input Impedance: 2K Ohm
Gain Range: +18 – +65 dB
Line Inputs:
Connector: Four balanced 1/4" jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 111 dB / 113 dB A-weighted
THD + N: 0.0007% (-103 dB)
Input Sensitivity: +17.38 dBu
Input Impedance: 22K Ohm
Gain Range: 0 – +50 dB
DI Inputs:
Connector: Four balanced 1/4" jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 104 dB / 106 dB A-weighted
THD + N: 0.0008% (-102 dB) - Balanced input
Input Sensitivity: +17.16 dBu
Input Impedance: >300K Ohm
Gain Range: 0 – +50dB
Aux Inputs:
Connector: Two balanced 1/4" jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 111 dB / 113 dB A-weighted
THD + N: 0.00055% (-105 dB)
Input Sensitivity: +17.16 dBu
Input Impedance: 10K Ohm
Line Outputs (1-8):
Connector: Eight impedance balanced 1/4" jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
Dynamic Range: 110 dB / 113 dB A-weighted
THD + N: 0.0007% (-103 dB)
Output Sensitivity: +18 dBu
Monitor Outputs (Main
& Alt):
Connector: Two impedance balanced 1/4" jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
Dynamic Range: 110 dB / 112 dB A-weighted
THD + N: 0.0008% (-102 dB)
Output Sensitivity: +18 dBu
Headphone Outputs:
Connector: Two unbalanced 1/4" jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
THD + N: 0.0009% (-101 dB)
Dynamic Range: 110 dB / 112 dB A-weighted
Output Sensitivity: +23 dBu
Digital
Specifications:
Supported Sample Rates: 44.1, 48, 88.2, 96 kHz
Maximum Word Length: 24-bit
S/PDIF: 2-channel optical or RCA jack pair
Digital Optical: TOSLINK (ADAT, max 48 kHz sample rate)
Word Clock: Two BNC jacks
Host Connection: Two IEEE-1394a (FireWire) ports (6-pin-to-6-pin FireWire
cable included)
MIDI: 5-pin MIDI DIN connectors - one input, two outputs
Size / Weight / Power:
Height: 2U rack (3.5 inches / 8.89 cm)
Width: 19 inches / 48.26 cm
Depth: 13.5 inches / 34.29 cm (including all knobs / connectors)
Weight: 11.22 lbs / 5.09 kg
Power Requirements: 100 - 240V, 50 - 60 Hz A/C (power cable included)
Max Power Consumption: 1A / 110 watts @ 110 volts
|
