With an extensive range of audio and MIDI I/O,
high-definition audio resolution, the creativity and speed of
industry-standard Pro Tools® software, FireWire connectivity, and a big,
comprehensive bundle of powerful software included free, 003™ Factory
enables you to attain the same high audio production quality as commercial
facilities in your own personal or project studio.
Get powerful hands-on control of your Pro Tools LE® sessions
through its integrated control surface and take advantage of the plethora
of I/O to connect and monitor your studio gear. Its portable size gives
you the freedom to take a professional Pro Tools system anywhere your
creative skills are needed — or inspired. And with over 80 powerful
plug-ins, virtual instruments, compatible applications, and artist
promotion services included, you have everything you need (and then some)
to compose, perform, record, edit, mix, and master audio for music and
desktop post production projects — with truly professional results.
003 (the hardware component of the 003
Factory package) offers an extensive array of analog and digital audio and
MIDI I/O, making it the ideal hub of any home or project studio, or a
powerful complement to an existing setup. You can connect just about any
instrument and device found in your studio to 003. Plug in your guitar or
bass for direct recording, connect line-level instruments such as synths
or samplers, or capture sound from any source though a connected
microphone — the interface’s premium mic preamps deliver the utmost
sound clarity. And with its studio-grade 24-bit/96 kHz audio resolution,
you can expect stunning, high-definition sound every time.
In addition, 003 provides the I/O you need to connect your MIDI gear,
optical devices (such as ADAT), and S/PDIF digital equipment, and also
features BNC Word Clock I/O to sync 003 to other external devices in your
studio. It can also function in standalone MIDI mode, allowing you to
integrate it into your MIDI setup sans computer. Plus, its FireWire
connectivity ensures high-speed data transfers between 003 and your
Windows- or Mac-based computer system — just plug 003 in and it’s
ready to go.

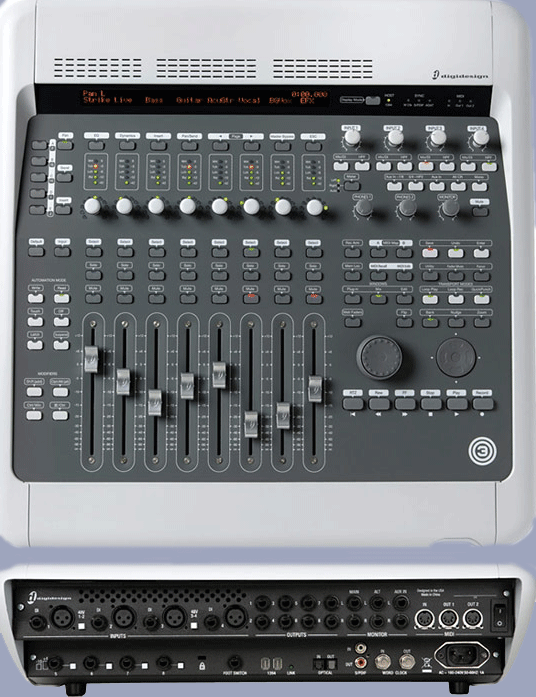

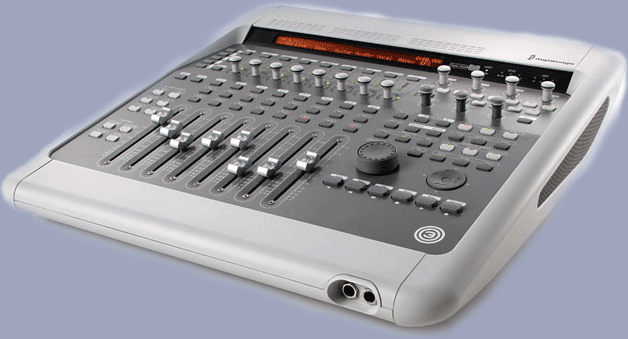

003™ is professionally built to feel and act
like higher-end mixing consoles, engineered to deliver the stunning
clarity of high-definition audio, and durably built to withstand any
knocks and bounces it encounters when your creative skills are needed on
the road.

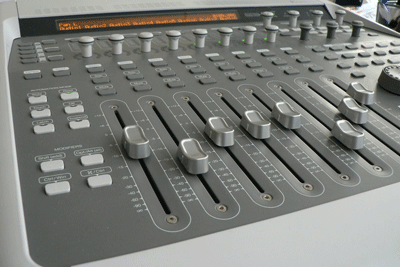

Integrated Control Surface
- 8 touch-sensitive motorized faders
- 8 motion-sensitive rotary encoders for
pan/send/meter/plug-in control
- Dedicated mute, solo, and select/record
arm switches per channel
- 6-character, 2-line LCD display per
channel displays track name; pan, send, fader, and plug-in values; and
timeline position
- 5-segment LED display for viewing
metering and automation mode status
- Easily assign inserts and sends from the
control surface
- Dedicated automation controls and LEDs
- Dedicated transport control
- Standalone MIDI Mode functionality*
- Jog/Shuttle wheel
*To use MIDI Mode on 003, you must first
download and update the firmware on your 003:
003
Firmware Update for MIDI Mode
Wide Range of I/O
- High-speed FireWire connectivity
- 18 simultaneous channels of audio I/O
- 24-bit/96 kHz resolution
- 8 analog inputs, 8 analog outputs
- 4 professional mic preamps with
individual gain and high-pass filter; 48V phantom power enabled on
channel pairs
- 8 channels of ADAT optical I/O or two
channels of S/PDIF optical I/O
- 2 channels of S/PDIF digital I/O
- 1 MIDI input, 2 MIDI outputs (16
channels in/32 channels out)
- BNC Word Clock I/O
- Dedicated studio monitor output, plus
alternate control room output
- Alternate Source input for external
device monitoring
- Dual headphone outputs with individual
source and level controls
Mic Inputs:
Connector: Four balanced XLR jacks
Mic Phantom Power: 48V
Equivalent Input Noise: -129 dBu
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 105 dB / 107 dB A-weighted
THD + N: 0.0007% (-103 dB)
Mic EIN: -129 dBu
Input Sensitivity: +2.2 dBu
Input Impedance: 2K Ohm
Gain Range: +18 – +65 dB
Line Inputs:
Connector: Four balanced 1/4" jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 111 dB / 113 dB A-weighted
THD + N: 0.0007% (-103 dB)
Input Sensitivity: +17.38 dBu
Input Impedance: 22K Ohm
Gain Range: 0 – +50 dB
DI Inputs:
Connector: Four balanced 1/4" jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 104 dB / 106 dB A-weighted
THD + N: 0.0008% (-102 dB) - Balanced input
Input Sensitivity: +17.16 dBu
Input Impedance: >300K Ohm
Gain Range: 0 – +50 dB
Aux Inputs:
Connector: Two balanced 1/4" jacks
Frequency Response: +/- 0.1 dB, 20 Hz - 20 kHz
Dynamic Range: 111 dB / 113 dB A-weighted
THD + N: 0.00055% (-105 dB)
Input Sensitivity: +17.16 dBu
Input Impedance: 10K Ohm
Line Outputs (1-8):
Connector: Eight impedance balanced 1/4" jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
Dynamic Range: 110 dB / 113 dB A-weighted
THD + N: 0.0007% (-103 dB)
Output Sensitivity: +18 dBu
Monitor Outputs (Main & Alt):
Connector: Two impedance balanced 1/4" jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
Dynamic Range: 110 dB / 112 dB A-weighted
THD + N: 0.0008% (-102 dB)
Output Sensitivity: +18 dBu
Headphone Outputs:
Connector: Two unbalanced 1/4" jacks
Frequency Response: +/- 0.5 dB, 20 Hz - 20 kHz
THD + N: 0.0009% (-101 dB)
Dynamic Range: 110 dB / 112 dB A-weighted
Output Sensitivity: +23 dBu
Digital
Specifications:
Supported Sample Rates:44.1, 48, 88.2, 96 kHz
Maximum Word Length:24-bit
S/PDIF: 2-channel optical or RCA jack pair
Digital Optical: TOSLINK (ADAT, max 48 kHz sample rate)
Word Clock: Two BNC jacks
Host Connection: Two IEEE-1394a (FireWire) ports (6-pin-to-6-pin FireWire
cable included)
MIDI: 5-pin MIDI DIN connectors - one input, two outputs
Size / Weight / Power:
Height: 5.125 inches / 13 cm
Width: 19.25 inches / 48.90 cm
Depth: 19.25 inches / 48.90 cm (including all connectors)
Weight: 16.1 lbs / 7.3 kg
Power Requirements: 100 - 240V, 50 - 60 Hz A/C (power cable included)
Max Power Consumption: 1A / 110 watts @ 110 volts
|
