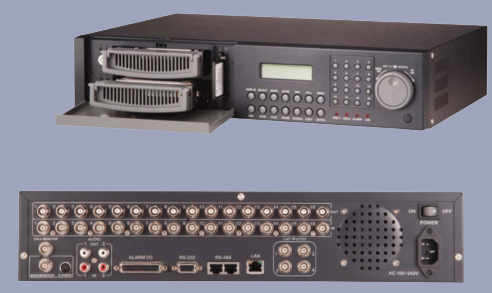

Plex EDR-1640 16
Channel Mpeg-4 Digital Video Recorder
|
EverFocus
|
Цифровой 16-и канальный дуплексный видеорегистратор. Компрессия MPEG-4; разрешение 720 х 576, 720 х 288, 360 х 288
(PAL); мониторинг - реальное время; суммарная скорость записи 200 п/с; индивидуальная настройка скорости и качества записи для каждого канала. Основной монитор - 1 BNC(composite), 1 S-Video; тревожный монитор - 1 BNC(composite); 4 матричных выхода
(BNC); сквозной канал для каждого входа; 16 тревожных входов, 4 выхода; 2 аудиовхода
(MIC), 2 аудиовыхода (speaker); детектор движения для каждого канала; архив - 2 х HDD 200 Гб (в комплекте), "горячая замена"; SCSI-интерфейс для дополнительных дисковых массивов; Eternet -10Base-T/100Base-TX; архивирование на USB-накопитель; RS-232, RS-485; AC220B, 430х88х300; вес 6 кг.,
t=00C~+500C.
Specifications:
Video
Format:
|
NTSC
or PAL
|
Display
Format:
|
1,
4, 6, 7, 8, 9, 10, 13, 16x Multiscreen 16 million colors
|
Video
Inputs:
|
16
Camera Inputs, 1 Vp-p/75 Ohm
|
Video
Output:
|
16
Loop
-through Video Output, 1 Vp-p at 75 Ohm, 1 BNC Composite
Video Output, 1 Vp-p/75 Ohm, 1 mini-din S-Video output,
1 Vp-p/75 Ohm,1 call BNC Composite Output, 1 Vp-p/75 Ohm
|
Video
Compression:
|
MPEG-4
|
Display
Resolution:
|
720
x 484 for NTSC, 720 x 576 for PAL
|
Alarm
Input:
|
16
Alarm Inputs, Normally Open or Normally
Closed Programmable
|
Alarm
Output:
|
4
Alarm Relay Outputs
|
Audio:
|
4
3.5 mm Mono Input; 4 3.5 mm Mono Output
|
Video
Pause:
|
Yes
|
Video
Loss Detection:
|
Yes
|
Event
Log:
|
Yes
|
Hard
Disk Storage:
|
2
HOt Swap x 3.5’’ IDE Hard Drive and SCSI External
Controller
|
Recording
Mode:
|
Continuous
time-lapse recording,
Timer
or Alarm and Motion Recording
|
Recording
Rate:
|
Up
to 480 IPS (NTSC) per camera
|
Playback
Rate:
|
Up
to 120/100 pictures per second
|
Playback
Search:
|
By
Date/Time or Event
|
Motion
Detection:
|
Yes,
with configurable grids per Camera
with
Adjustable Sensitivity
|
Setup:
|
On-Screen
Display
|
User
Interface:
|
Menu
Driven
|
User
Input Device:
|
Front
Key Panel
|
Title:
|
12
Character Title Generator For Each Camera
|
Ethernet:
|
RJ45
network connector
|
Password
Protection:
|
For
Menu and Recording
|
Archive: |
USB
Interface Device |
Power
Source:
|
24V
AC + 10%
|
Power
Consumption:
|
60
W max
|
Operating
Temperature:
|
0°C
~ +40°C
|
Dimensions:
|
430
(L) mm x 88 (W) mm x 300 (H) mm
|
Features
- Triplex
operation for simultaneously viewing, recording and playback
- 16 color or b/w loop-through camera inputs
- Full
screen up to 16 multiscreen display for monitoring and playback
- MPEG-4
compression
- Intelligent
motion detection with programmable area and sensitivity for each
camera
- Real time recording (up to 480 IPS)
- Real time playback (up to 120/100 pictures per second)
- ISDN and / or LAN module optional
- 4 audio inputs, 4 audio output
- Synchronized video and audio
- System auto recovery after power failure (Watchdog function
and self diagnostic technology)
- Stable and reliable LINUX-based operating system
- Watermark
and time/date stamp in exported images
|
|
|
|
|
