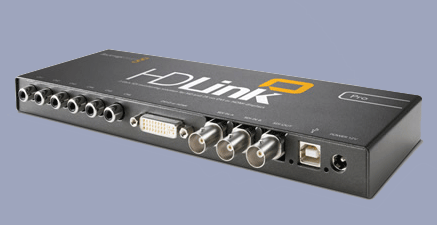

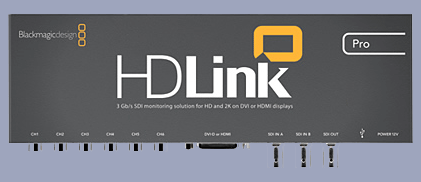

HDLink Pro включает в себя
возможность мониторинга 2K материала по
SDI на 30 дюймовых дисплеях, 3D таблицы
соответствия (LUT) для настройки
цветовых параметров монитора и 6
аудиовыходов.
HDLink Pro поддерживает новую технологию 3 Gb/s
SDI. При совместной работе с Multibridge Eclipse,
вы сможете просматривать 2K (2048 x 1556, 24 fps)
материал на 30-дюймовых мониторах. Для
мониторинга HD-SDI вы можете использовать
24-дюймовые мониторы.
HDLink Pro имеет встроенные 3D таблицы
соответствия (LUT) и утилиту HDLink Utility,
которая позволит вам по USB соединению
настраивать таблицы 3D LUT. Вы также
можете загружать таблицы из файлов, что
дает вам возможность использования
программного обеспечения других
производителей для генерирования
таблиц.
Теперь вы сможете прослушивать звук в
формате 5.1 и деимбедировать
необходимое вам количество
аудиоканалов идущих по SDI, так как в
новой модели HDLink Pro есть 6 аудиовыходов.
У HDLink Pro есть петлевой выход SDI, поэтому
возможен вывод видеосигнала на другие
мониторы и т.д.
Спецификация:
- SDI видеовход: 1 x BNC вход с возможностью
переключения между SD-SDI, HD-SDI 4:2:2, HD-SDI 4:4:4
и 2K по SDI.
- SDI видеовход: 1 x BNC петлевой выход с
возможностью переключения между SD, HD
4:2:2, HD 4:4:4 и 2K.
- SDI аудио: 6 канальный выход с
возможностью деимбедирования сигнала,
идущего с SDI входа.
- Аналоговый аудиовыход: 6 x небалансных
RCA (10db) 24 bit выходов.
- DVI-D видеовыход: поддерживает Dual Link DVI-D
дисплеи размером до 30 дюймов (2560 x 1600).
| SDI Video
Input |
2 x
BNC inputs for SD-SDI, HD-SDI 4:2:2 and Dual Link HD-SDI 4:4:4
when using both inputs. |
1 x BNC input switches
between SD-SDI, HD-SDI 4:2:2, HD-SDI 4:4:4 and 2K via SDI. |
| SDI Video Output |
None |
1 x BNC active loop through output
switches between SD, HD 4:2:2, HD 4:4:4 and 2K. |
| SDI Audio De-embedding |
2 channels out
de-embedded from SDI input. |
6 channels out de-embedded from
SDI input. |
| Multi Rate SDI Support |
270 Mb/s standard
definition, 1.5 Gb/s high definition 4:2:2 and Dual Link 4:4:4. |
270 Mb/s standard definition, 1.5
Gb/s high definition 4:2:2, 3 Gb/s 4:4:4 high definition and 2K
film. |
| Analog Audio
Output |
2 x
unbalanced 24 bit analog outputs on RCA connectors -10db. |
6 x unbalanced 24 bit
analog outputs on RCA connectors -10db. |
| DVI-D Video
Output |
Supports
DVI-D displays up to 27 inches 1920 x 1200 in size. |
Supports Dual Link
DVI-D displays up to 30 inches 2560 x 1600 in size. |
| DVI-D
Configuration |
Automatic adjustment
using VESA E-EDID1.3.
Manual override of display configuration via HDLink Utility
software. |
| DVI-D
Resolution |
Pixel-for-pixel
display on LCD displays. |
| DVI-D Connection |
Via any DVI-D or DVI-I
cable. Compatible with single-link and dual-link DVI cables.
DVI-D video support only. Audio via RCA analog outputs. |
| HDMI Audio Output |
Audio not
available in HDMI connection.
Use RCA audio outputs. |
Audio combined with video in HDMI
connection. |
| HDMI Video Output |
Supports HDMI displays,
such as a TV or video projectors up to 1920 x 1080
resolution. |
| HDMI Configuration |
Automatically
configures to connected display. |
| HDMI Resolution |
Pixel for pixel HD
resolution input to connected device. |
| HDMI Connection |
Via
included DVI-D male to HDMI Type A female adaptor. Plug into
HDLink when connecting to HDMI devices. HDMI video support only.
Audio via RCA analog outputs. |
Via included DVI-D
male to HDMI Type A female adaptor. Plug into HDLink when
connecting to HDMI devices. HDMI video supports HDMI audio. |
| Gamma
Correction |
Independently
adjustable 1D 10 bit lookup table per color component.
Interactive real time gamma adjustment added to lookup table. |
Independently
adjustable 3D lookup tables per color component. Interactive
real time adjustment of lookup tables. |
| Updates and
Configuration |
USB 2.0 High Speed
(480Mb/s) interface. |
| HD Format
Support via DVI-D |
1080p23.98,
1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080p30, 1080i48,
1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. |
1080p23.98,
1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080p30, 1080i48,
1080i50, 1080i59.94, 1080i60, 720p50, 720p59.94, 720p60, 2048 x
1556p23.98 and 2048 x 1556p24. |
| HD Format Support via HDMI |
1080p25, 1080i50,
1080i59.94, 1080i60, 720p50, 720p59.94 and 720p60. |
| SD Format
Support via DVI-D |
625/25 PAL and
525/29.97 NTSC. |
| SD Format Support via HDMI |
Not
supported. |
625/25 PAL and
525/29.97 NTSC. |
| SDI Compliance |
SMPTE 292M, SMPTE
259M, SMPTE 296M, ITU-R BT.656 and ITU-R BT.601. |
| SDI Video
Sampling |
4:2:2 and 4:4:4. |
| SDI Color
Precision |
4:2:2 10 bit and 4:4:4
10 bit. |
| SDI Color
Space |
4:2:2 YUV, 4:4:4 YUV
and 4:4:4 RGB. |
| SDI Audio Sampling |
Television standard
sample rate of 48 kHz and 24 bit. |
| Software
Control |
HDLink Utility
included free for Windows XP, Windows Server 2003, Windows Vista
and Mac OS X Universal Binary for Intel and PowerPC based Macs. |
| Firmware
Upgrade |
Automatically when new
HDLink Utility is installed. |
| Real Time
Processing |
Adaptive pull-down
processor guarantees smooth motion display. |
| Video Scaling
via DVI-D |
Pixel for pixel
display.
Setting for 2x resize of NTSC for displays with at least 1440 x
972 pixels.
Setting for 2x resize of PAL for displays with at least 1440 x
1152 pixels. |
| Installation |
Small brick style
compact design. |
| Power Supply |
5 Volt universal
power supply included.
IEC power cable required. |
12 Volt universal power supply
included.
IEC power cable required. |
| Interface |
DVI-D digital type
connection to LCD computer monitor or HDMI Type A digital type
connection to HDMI display, e.g. TV or video projector. |
| Resolution via DVI-D |
1920 x
1200 required for HD1080 video SDI formats. 1920 x 1200
recommended for 2x resize display of NTSC and PAL SDI formats.
1280 x 800 recommended for HD720 video SDI formats. Please note
that few, if any, DVI-D displays support 720p50. |
1920 x 1200 required
for HD1080 video SDI formats. 1920 x 1200 recommended for 2x
resize display of NTSC and PAL SDI formats.
1280 x 800 recommended for HD720 video SDI formats. Please note
that few, if any, DVI-D displays support 720p50. 2560 x 1600
required for 2K feature film formats. |
| Resolution via HDMI |
The HDMI input of a
display must accept either:
• 1920 x 1080 for HD1080 video SDI formats or
• 1280 x 720 for HD720 video SDI formats
Please note, that the native resolution of an HDMI display will
often be less than full resolution HDTV, even if the display is
rated to accept HDTV signals. This is a physical limitation of
the display itself and full-resolution HDMI displays, or DVI-D
displays, should be considered if pixel for pixel video is
required. Please also note that only a small percentage of HDMI
displays support 720p50. |
| Refresh Frame Rate for DVI |
Nominal 60Hz, however
48 to 72 Hz recommended. |
|
